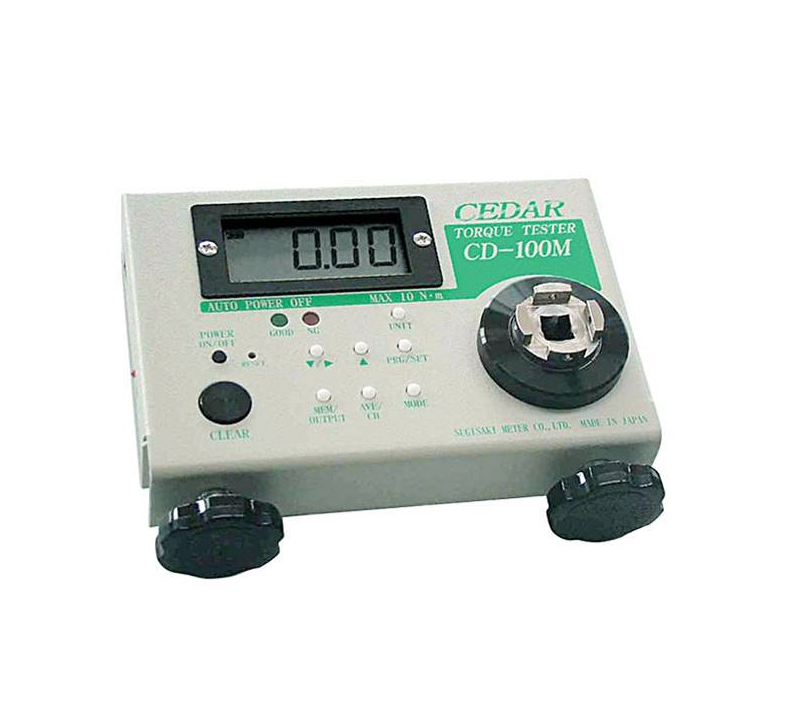

Measuring range : 0.10～10 N・m (1.0～100 kgf・cm, 1.0～90 lbf・in)
(at the time of Track)
Accuracy: ±0.5％(199 or less digit±1digit)
Display: The 3.5 figures digital display of LCD
The measurement direction: CW-CCW (right and left)
Measurement Mode: Track , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output)
High and low limits judging function:
High and low value are measurement within the limits, and can be set up.
Real-time Output: Load torque value is outputted every about1/ 180 second.
The Maximum, the minimum, and the average value display:
The maximum, the minimum value, and average value of the saved data
Automatic Clearance:
Automatically clear the displayed value after certain time
(0.5 - 3.0 sec,selectable at each 0.5 sec).
Setting 0.0 sec for manual Zero clearance
One-touch zero: A clear button is pushed and it is a zero. Data is outputed.
Data output: ASCII format (baud rate 19200)
Power supply: Ni-Cd chargeable battery 1.2V×5cells 700mAh
Auto power save: 10 minutes no use, automatically switch off.
Charging time: About 3 hours
Continunous working time: About 12 hours
Socket fit mouth: □ 20mm/ □9.5mm
Weight: Abbreviation 1 kg
Outside dimension: 160（W）×125（D）×55（H）
Attachment: Measurement joint SJ50/SJ10K
Accessories(one piece each): AC/DC adaptor,
Exclusive receipt case
An inspection report, a proofreading certificate, traceability system figure
