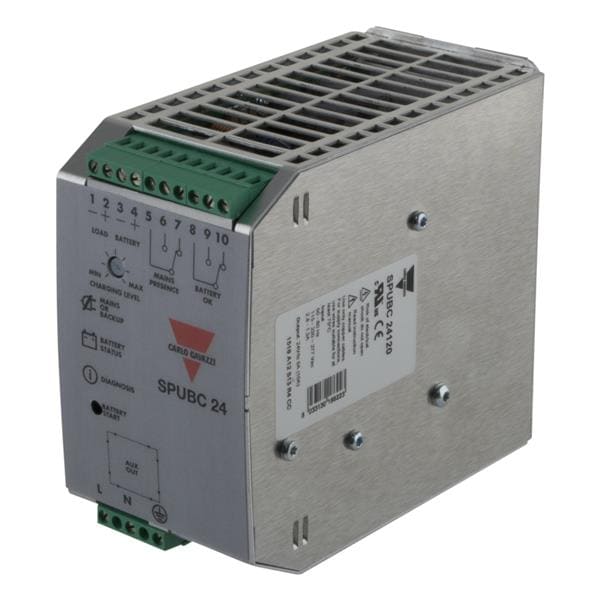

Carlo Gavazzi SPUBC24120 UPS - Uninterruptible Power Supplies Switching Power Supply, UPS and Battery Charger, AC, 120W, 24V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage, Short-circuit, Over-temperature and Battery Charging Protections, 65x115x135mm metallic housing

Width: 65 mm

Height: 115 mm

Length: 135 mm

IP Rating: IP20

Weight Kg: 0.6 Kg

Connection: Screw

Output Power: 120 W

Input Voltage: 115 VAC to 277 VAC

Mounting Style: DIN Rail

Isolation Voltage: 3 kVAC

Number of Outlets: 1 Outlet

Number of Outputs: 1 Output

Input Voltage - Max: 277 VAC

Input Voltage - Min: 115 VAC

Input Voltage, Nominal: 230 VAC

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
