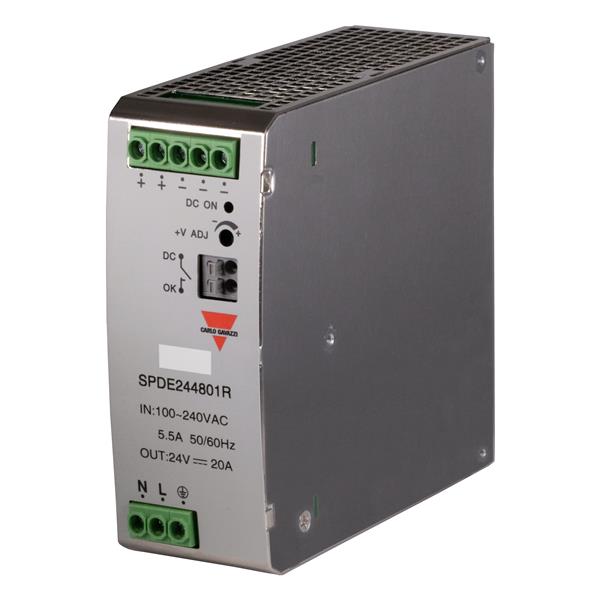

Carlo Gavazzi SPDE244801R Switching Supplies Switching Power Supply, AC/DC, 480W, Single Phase, 24V, Screw Terminals, IP20,DC OK relay, PFC, DIN-Rail Mounting, Over-load, Over-voltage, Short-circuit and Over-temperature Protections, metal housing

Width: 48 mm (1.89 in)

Height: 125 mm (4.921 in)

Length: 131.5 mm (5.177 in)

Industry: Medical, Industrial

Dimensions: 131.5 mm x 48 mm x 125 mm

Output Power: 480 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
