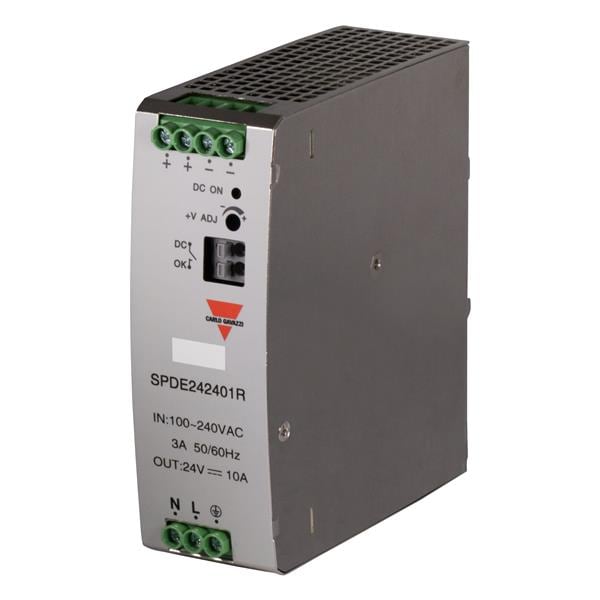

Carlo Gavazzi SPDE242401R Switching Supplies Switching Power Supply, AC/DC, 240W, Single Phase, 24V, Screw Terminals, IP20,DC OK relay, PFC, DIN-Rail Mounting, Over-load, Over-voltage, Short-circuit and Over-temperature Protections, metal housing

Width: 41 mm (1.614 in)

Height: 110 mm (4.331 in)

Length: 124 mm (4.882 in)

Industry: Medical, Industrial

Dimensions: 124 mm x 41 mm x 110 mm

Output Power: 240 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
