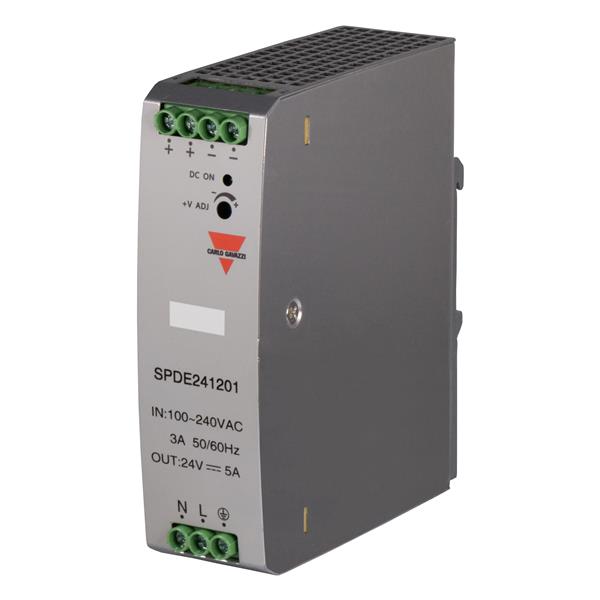

Carlo Gavazzi SPDE241201 Switching Supplies Switching Power Supply, AC/DC, 120W,Single Phase, 24V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage, Short-circuit and Over-temperature Protections, metal housing

Width: 36 mm (1.417 in)

Height: 100 mm (3.937 in)

Length: 125 mm (4.921 in)

Industry: Medical, Industrial

Dimensions: 125 mm x 36 mm x 100 mm

Output Power: 120 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
