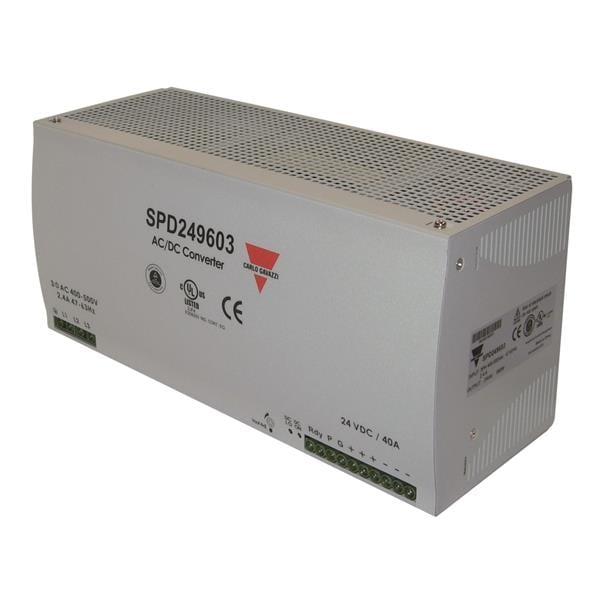

Carlo Gavazzi SPD249603 Switching Supplies Switching Power Supply, AC/DC, 960W Three-Phase, 24V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage and Short-circuit Protections, 275.74x125.9x118.2mm plastic housing

Width: 275 mm (10.827 in)

Height: 118.8 mm (4.677 in)

Length: 162.2 mm (6.386 in)

Industry: Industrial

Dimensions: 126.2 mm x 275 mm x 118.8 mm

Input Type: 3-Phase / Three Phase

Output Power: 960 W

Input Voltage: 400 VAC to 500 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 500 V

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 40 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 40 C
