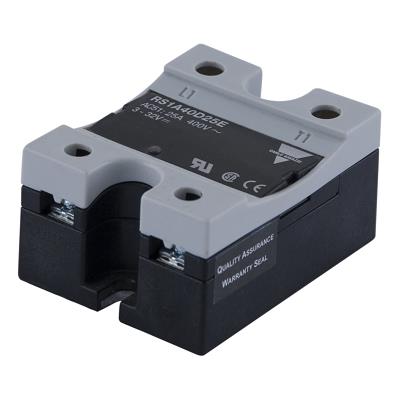

Carlo Gavazzi RS1A40D40E SSR 1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 24 - 440 Vac (600 Vp), Rated current (Ie): 40 Aac, Control voltage (Uc): 3 - 32 Vdc, Built-in overvoltage protection

Width: 44.8 mm

Height: 28.8 mm

Length: 58.2 mm

IP Rating: IP20

Output Type: Zero Switching

Input Current: 13 mA

Mounting Style: Panel Mount

Termination Style: Screw

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 40 A

Load Voltage Rating: 400 VAC

Control Voltage Range: 3 VDC to 32 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C

Input to Output Isolation Method: 4 kVAC
