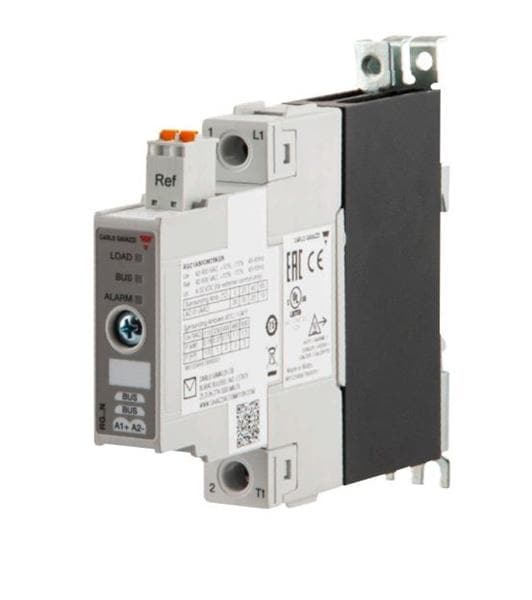

Carlo Gavazzi RGC1A60CM42GEN SSR 1-pole DIN-rail mount SSR, Zero-cross switching via bus interface (NRG), Real-time data (A, V, W, Hz, kWh, Hrs) and monitoring, Operating voltage (Ue): 42 - 660 Vac (1200 Vp), Rated current (Ie): 43 Aac, Built-in overvoltage protection

IP Rating: IP20

Output Type: SCR

Input Current: 14 mA

Mounting Style: DIN Rail Mount

Termination Style: Push-In

Load Current Rating: 50 A

Load Voltage Rating: 42 VAC to 660 VAC

Control Voltage Range: 4 VDC to 32 VDC

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Input to Output Isolation Method: 4000 Vrms
