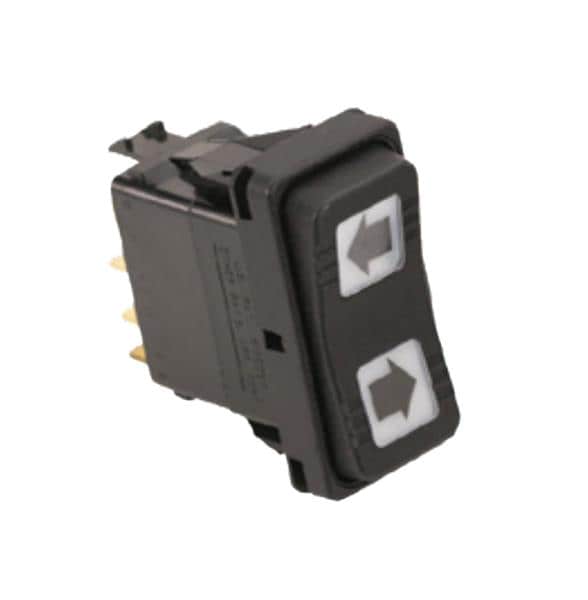

Carling Technologies VJ51N221-1RR00-000 Sealed Rocker Switches VJ51N2211RR00000

Life: 100000 Cycle

Color: Red

Width: 24.38 mm

Height: 40.28 mm

Length: 48.51 mm

Actuator: Curved Rocker

IP Rating: IP66, IP68

Lamp Type: Neon

Illuminated: Illuminated

Contact Form: DPDT

Panel Cutout: 36.83 mm x 21.08 mm

Mounting Type: Snap In

Terminal Seal: Sealed

Actuator Style: Curved Rocker

Current Rating: 10 A, 15 A

Mounting Style: Panel Mount

Actuator Length: 48.51 mm

Contact Plating: Silver

Switch Function: ON - OFF - ON

Housing Material: Polycarbonate (PC)

Actuator Material: Nylon 6.6

Termination Style: Quick Connect

Voltage Rating AC: 125 VAC. 250 VAC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
