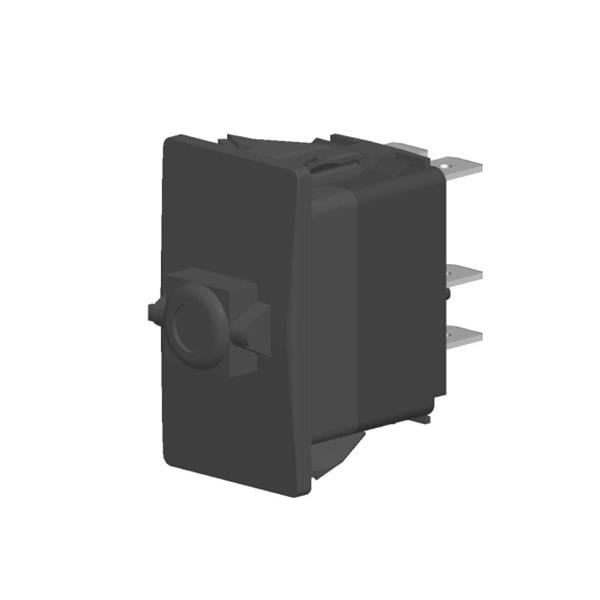

Carling Technologies V2D1A60B-00000-000 Snap-In Rocker Switch 1-pole, (ON) - None - OFF, 20A 12VDC not HP rated, Illuminated, Sealed V-Series Switch Only, .250 Tab (Q.C.), 8 Terminal base and No Actuator

Life: 150000 Cycle

Actuator: Rocker

Illuminated: Illuminated

Unit Weight: 26 g

Contact Form: SPST

Mounting Type: Bracket

Actuator Style: Rocker

Contact Rating: 20 A

Current Rating: 20 A

Mounting Style: Panel Mount

Contact Plating: Silver

Switch Function: OFF - (ON)

Termination Style: Quick Connect

Voltage Rating DC: 12 VDC

LED Supply Voltage: 12 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
