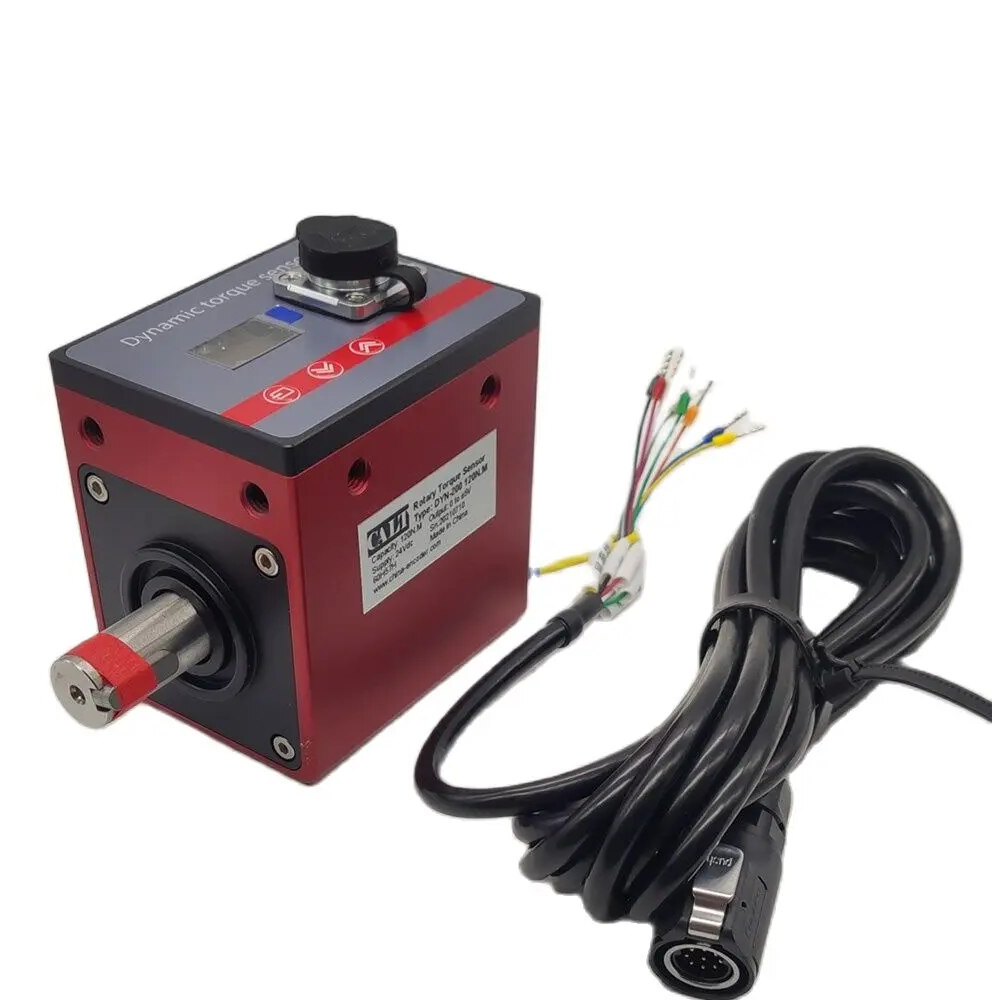

Capacity: ±10000N.m
Maximum torsion angle: 2.60*10rad(0.149°)
Speed Capacity: ≤15000rpm
Moment of inertia: 0.38kgcm
Speed Signal: 120/60/10pulse/turn, 4-20mA, 0-20mA, 0-5V, 0-10V
Natural frequency of rotor vibration: 19.4kHz
Zero Balance: ±2% F.S
Torsion constant: 3.85*10Nm/rad
Non-linearity: 0.5% F.S
Material: Stainless Steel
Hysteresis: 0.5% F.S.
Stability per year: 0.3%/year
Repeatability 0.2% F.S.
Load resistance: ＞2kΩ
Creep (30 Min): 0.03% F.S
Operating Temp Range: DC24V 0.2A
Temp Effect on output: 0.01% F.S./10℃
Current Consumption: ＜150mA
Temp Effect on Zero: 0.01% F.S. /10℃
Work Environment: -10-50℃ 0-85%RH
Response Time: 0.6ms(50%response)
Safe Overload: 200%
Response frequency: 1kHz
Cable Specifications: Φ5*3m
Acquisition Speed: 550/1200times/second
Cable ultimate pull: 10kg
Display Range: -99999-99999
