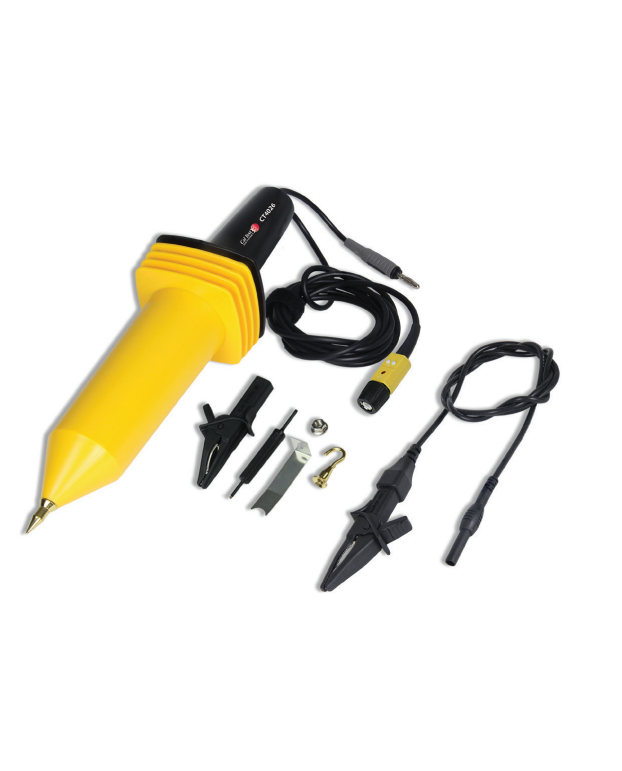

Cal Test Electronics CT4026 High Voltage Probe (1000:1, DC ~ 150 MHz, 18 kV)

Operating Parameters & General

Maximum Input Voltage (CAT I): 18 kV (DC + ACpk), 12 kVrms AC

Maximum Loading Current: 90 µA

Division Ratio: 1000:1

Bandwidth: DC to 150 MHz

Compensation Range: 10 pF to 35 pF

Temperature Coefficient: ≤200 ppm/ºC

Input Resistance: 200 MΩ

Input Capacitance: 1.5 pF

Rise Time: 2.4 ns

Signal/Noise:

>60 dB @ 1 kHz

>50 dB @ 1 MHz

Accuracy:

DC Volts: ≤3%

AC Volts : ≤3% at 1 kHz

Cable Length:6.6 ft (2 m)

Designed for Use in: Pollution Degree 2

Operating Environment: 14ºF to 131ºF (-10ºC to 55ºC)

Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)

Humidity: ≤85% RH at 95ºF (35ºC)

Dimensions: 3.1 × 3.1 × 12.6 in (8 × 8 × 32 cm)

Weight: 1.0 lbs (460 g)
