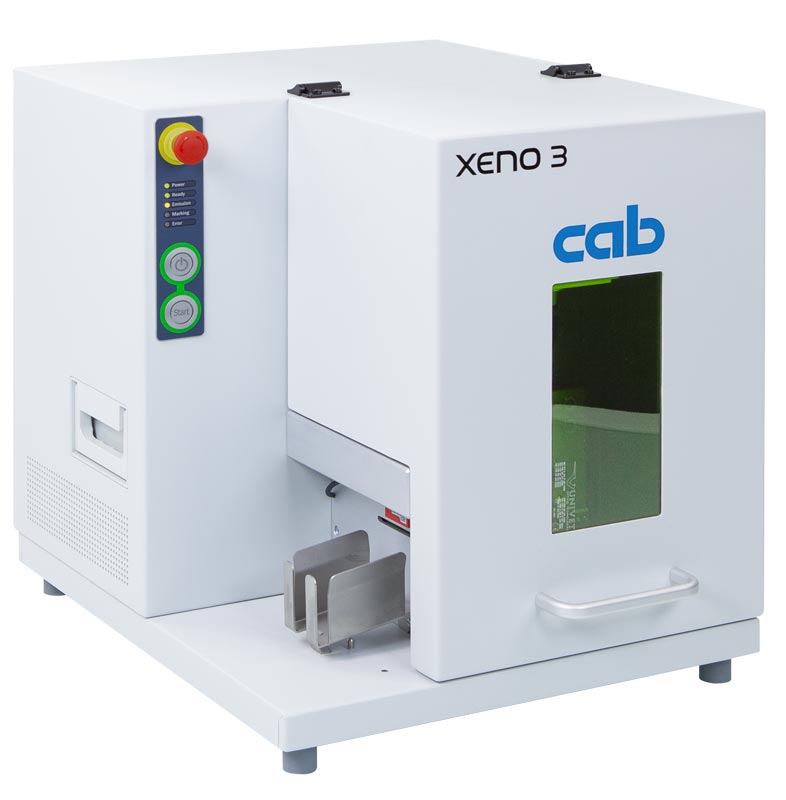

Cab XENO 3 Laser Marking (112 x 112 mm)

Laser Source: Ytterbium fiber laser, pulsed

Output Power: 20 W, 30 W

Pulse Energy: 1 mJ

Wavelength: 1,064 nm

Beam Quality (M²): < 1.8

Pulse Width: < 120 ns

Pulse Frequency: 20 – 60 kHz

Working Distance: 210 ± 8 mm

Marking Field: 112 × 112 mm

Device Dimensions (W × H × D): 420 × 480 × 480 mm

Weight: < 35 kg

Laser Protection Window (W × H): 100 × 200 mm

Rear Connections: 2 × Ethernet TCP/IP, AF5 extraction and filtration system, external start, external E-stop

Power Supply: 100 – 240 VAC, 50/60 Hz

Power Consumption: Standby < 35 W / Typical 150 W / Up to 200 W

Marking Software: cabLase Editor 5 with cabLase automation
