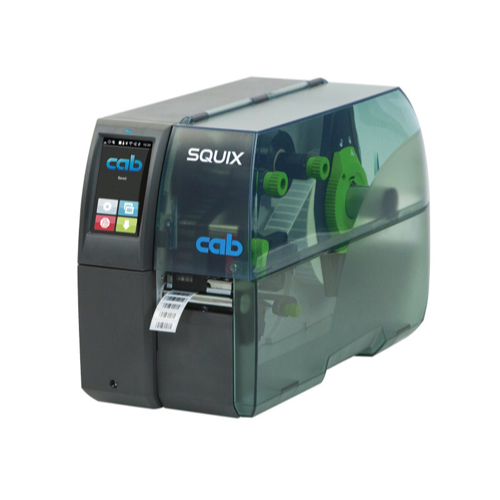

Cab SQUIX 2 Label Printers For Industrial Operation (300 dpi; 250mm/s)

Printing Technology: Thermal transfer

Resolution: 300 dpi

Print Width: up to 56.9 mm

Print Speed: up to 250 mm/s

Media Types: Paper, cardboard, PET, PE, PP, PI, PVC, PU, acrylate, Tyvec

Label Width: 4 – 63 mm

Media Thickness: 0.03 – 0.6 mm

Media Weight: 300 g/m²

Roll Diameter: up to 205 mm

Core Diameter: 38.1 – 76 mm

Ribbon Orientation: Outside or inside wound

Ribbon Roll Diameter: up to 80 mm

Ribbon Core Diameter: 25.4 mm

Ribbon Length: up to 360 m

Ribbon Width: 25 – 67 mm

Dimensions (W × H × D): 200 × 288 × 460 mm

Weight: 9 kg

Gap Sensor: Labels, punched marks, finished materials, print marks on transparent media

Reflective Sensor (bottom side): Labels, finished materials, print marks on non-transparent media

Memory: 256 MB RAM, 50 MB IFFS

Battery: Real-time clock and date/time backup

Interfaces: RS232C, USB 2.0 for PC, Ethernet 10/100 Mbit/s, USB host

Control Panel: 4.3-inch color LCD touchscreen, resolution 272 × 480 px

Power Supply: 100 – 240 VAC ~ 50/60 Hz, PFC

Power Consumption: <10 W (standby) / 100 W (typical) / max. 200 W

Operating Temperature / Humidity: +5 – 40 °C / 10 – 85% RH, non-condensing

Storage Temperature / Humidity: 0 – 60 °C / 20 – 85% RH, non-condensing
