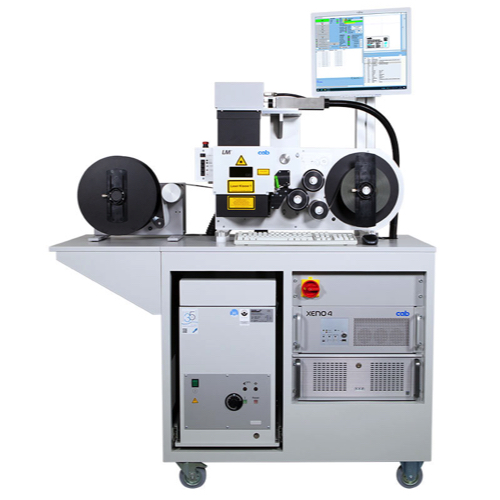

Cab LM+ Laser Label Marker (160mm x 5mm x 190mm; 0.2mm)

Laser Marking Area: 160 mm × 5 mm × 190 mm

Positioning Accuracy: 0.2 mm

Transport Speed: 2 mm/s

Printing Materials: Labels or roll stock

Material Thickness: 0.055 – 0.3 mm

Label Width: 25 – 120 mm

Label Height: 180 mm

Outer Roll Diameter: 300 mm

Core Diameter: 76 mm

Machine Dimensions (W × H × D): 440 × 520 × 802 mm

Laser Protection Window (W × H): 100 × 50 mm

Machine Stand Diameter: Ø 50 mm

Exhaust Port Diameter: Ø 50 mm

Weight: 22 kg

Operating Voltage / Frequency: 100 – 240 VAC ~ 50/60 Hz

Connectivity: RS232C serial connection, FL+ Con5
