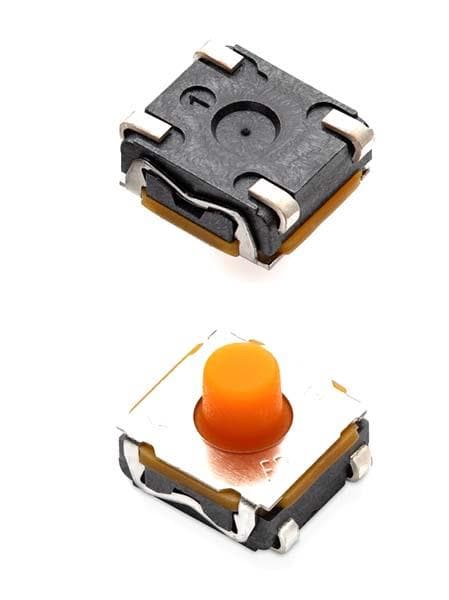

C&K Y31341441FP LFS Dual Circuit SPDT NC-NO 4.75N J Bend

Life: 300000 Cycle

Color: Orange

Width: 6.2 mm

Height: 5.2 mm

Length: 6.2 mm

Travel: 0.85 mm

Actuator: Round

IP Rating: IP67

Illuminated: Non-Illuminated

Stem Height: 5.2 mm

Contact Form: SPDT

Power Rating: 1 VA

Mounting Type: Sealed

Current Rating: 50 mA

Mounting Style: SMD/SMT

Contact Plating: Silver

Operating Force: 4.75 N

Switch Function: ON - (OFF), OFF - (ON)

Actuator Material: Silicon

Termination Style: J Form Lead

Voltage Rating DC: 24 VDC

Mounting Direction: Straight

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
