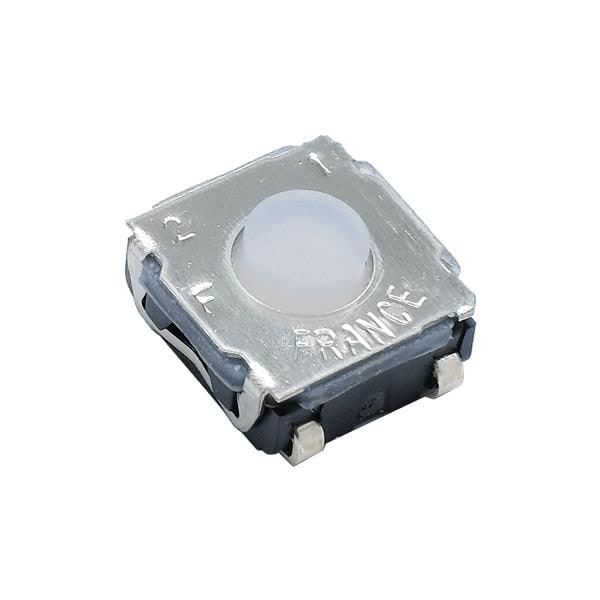

C&K KSC2TE41J LFS Tireless Endurance Tactile Switch Top actuated tact, soft actuator, J leads, 4.00N, 6.2 x 6.3 x 4.9 mm, Extended Life Time

Life: 5000000 Cycle

Color: Clear

Width: 6.2 mm

Height: 2.9 mm

Length: 6.3 mm

Travel: 0.35 mm

Actuator: Round

IP Rating: IP67

Illuminated: Non-Illuminated

Stem Height: 3.5 mm

Contact Form: SPST

Power Rating: 1 VA

Mounting Type: Sealed

Actuator Style: Soft

Current Rating: 1.3 mA

Mounting Style: SMD/SMT

Actuator Length: 0.6 mm

Contact Plating: Silver

Ground Terminal: No

Operating Force: 4 N

Switch Function: OFF - (ON)

Actuator Material: Silicone

Termination Style: J Form Lead

Voltage Rating DC: 24 VDC

Mounting Direction: Straight

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
