Technical Specifications
Weights included: 4 lb
Scale: English
General
Weight: 8.2 kg/ 18 lb
Dimensions: L x W x H: 25 x 25 x 127 cm/ 10 x 10 x 50 in
Delivery Content
Base with arm support
Guide tube with inch-scale (1568)
Falling weight 4 lbs (1571)
Punch
Manual
Procedure
Impact Test
For impact studies, the top block is leveled with the plug removed exposing a 1.43 cm (0.563 in) hole. The 1.27 cm (0.50 in) diameter, round-nosed end of the 4 lb weight may now be dropped from any height along the graduated scale on the guide tube from 0 to 160 inch-pounds.
Bend Test
To make a bend test, the coated panel 3” x 4” (0.048” thickness) is first bent 180° over the 1/8” rod. The bent panel is placed between the parts of the hinge. Then the impact tool, flat face down, is dropped from any desired height onto the upper part of the hinge. The cylindrical fold in the panel is squeezed into a conical shape.
Features

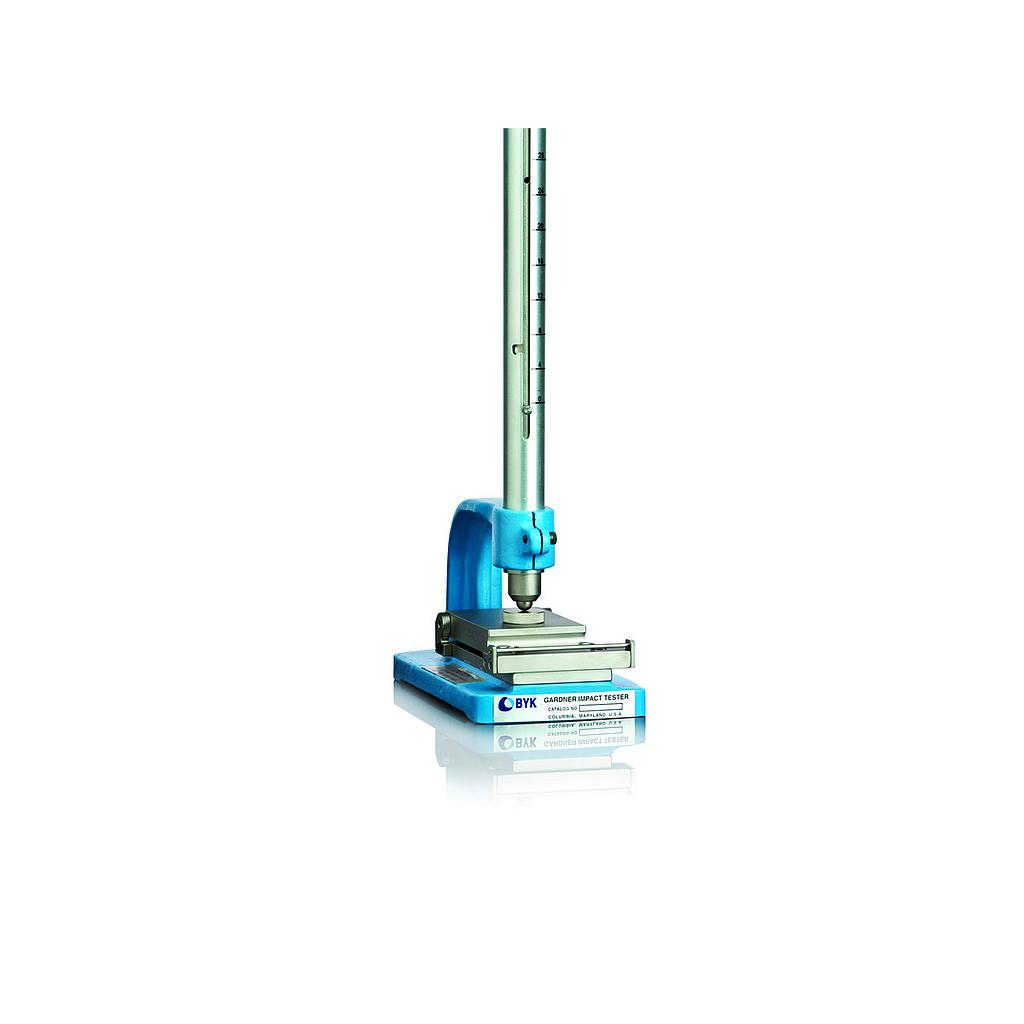

The Coverall Bend and Impact Tester is designed to test the flexibility and impact resistance of coatings.
Graduated guide tube up to 160 inch-pounds of force
Redesigned guide tube to easily hold the weight during sample change-over
Indenter built into the weight
