Rated Voltage (V): 525
Frequency (Hz): 50
Rated Capacity: 50kVAR/3x192μF
Rated Current (A): 55
Dimensions (mm) ØDxH: 136x300
Discharge resistor (kΩ): 47

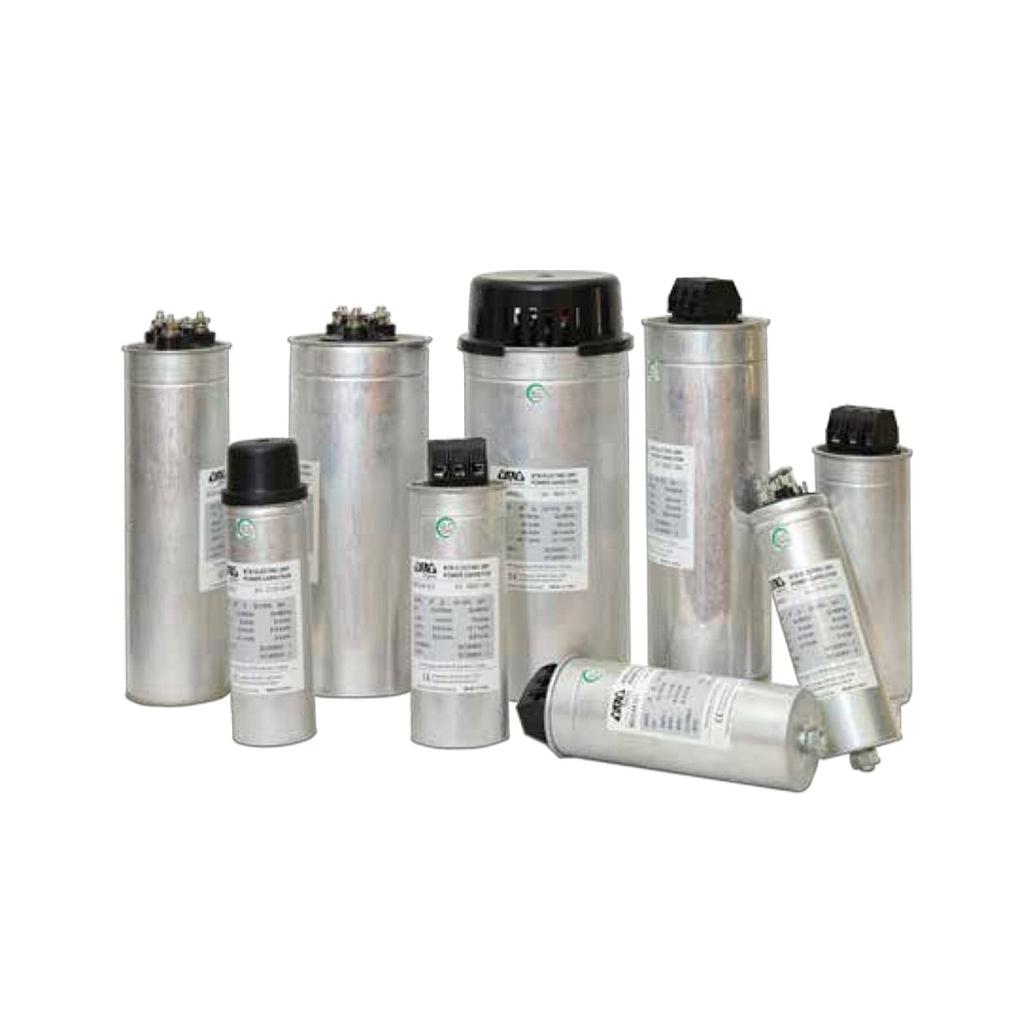

Construction: Cylindrical
External Terminal Box & Casing Finishing: Extruded Aluminum Casing
Type: Dry, Self Healing
Dielectric: Polypropylene
Plate: Zinc-Aluminum Alloy
Connection: 3-phase (Internal Delta)
Temperature Category: -25°C~+55°C (class D)
Max altitude: 2000 m
Max relative humidity: 95%
Capacitance Tolerance: -5%/+10%
Dielectric Loss: ≤0.2W/kVAR
Testing Voltage Between Terminals/Time: 2.15Un/10s
Testing Voltage Between Terminals And Container/Time: 4kV/10s
Maximum Permissible Voltage:
1.1 Un (8hours in evenry 24hours)
1.15 Un (30minutes in evenry 24hours)
1.2 Un (5minutes)
1.3 Un (1minute)
Maximum Permissible Current: 1.5 In
Maximum inrush current: 200 In
Lighting Impulse Test Between Terminal and
Container: 8kV (Peak)
Statistical Life Expectancy: >130,000 Operating Hours
Standards: IEC 60831-1/ 2
IP: Rating IP20
