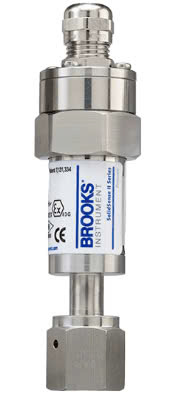

Brooks Instrument GFF Pressure Transducers (±0.25%F.S)

Body Type: Flow Through

Performance

Operating Temperature:

+ Storage:-20ºF to 180ºF (-29ºC to 82ºC)

+ Compensated:-4ºF to 140ºF (-20ºC to 60ºC)

Burst Pressure: 400% full scale

Proof Pressure: 200% full scale up to 2.000 psi, 150% full scale for higher ranges

Accuracy: 0.25% full scale (BFSL)

Response Time: < 5 msec

Zero and Span Temperature Coefficient (each):

>100 PSI Ranges Full Scale: ±0.02% full scale/ºF (-4ºF to 140ºF, -20ºC to 60ºC)

<100 PSI Ranges Full Scale: ±0.04% full scale/ºF (-4ºF to 140ºF, -20ºC to 60ºC)

Mechanical

Housing: Stainless steel, polymer plastics

Wetted Parts: 316L stainless steel, SEMI F20

Surface Finish: Compliant with SEMI F19

Cleanliness: Compliant to ASTM F1374-92 (2005)

Internal Volume: 1.79cc

Process Connections: (See Product Configurations for available options

Approximate Shipping Weight: 0.70 lb. (0.32 kg)

For more details, see datasheet.
