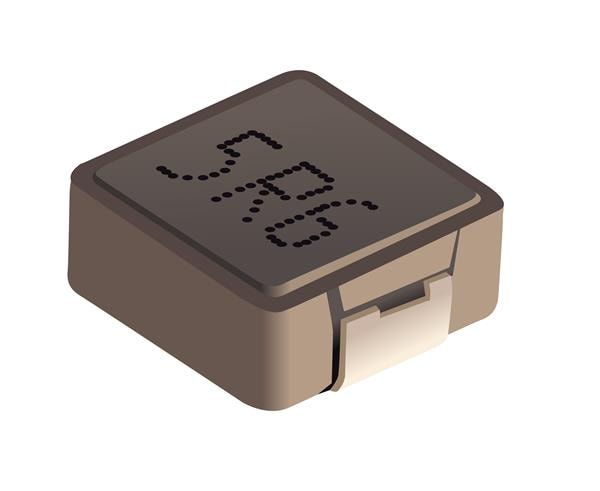

Bourns SRP6530A-R56M High Power Inductor Ind,7.1x6.6x3mm,0.56uH+/-20%,18A,shd
ManufacturerBourns(View more products from this manufacturer)
ModelSRP6530A-R56M
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 6.6 mm
Height: 3 mm
Length: 7.1 mm
Core Type: Molded
Shielding: Shielded
Tolerance: 20 %
Inductance: 560 nH
Application: Power
Termination: Standard
Unit Weight: 750 mg
Core Material: Metal Alloy
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 500 kHz
Termination Style: SMD/SMT
Maximum DC Current: 18 A
Saturation Current: 28 A
Maximum DC Resistance: 5.5 mOhms
Self Resonant Frequency: 78 MHz
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 55 C
