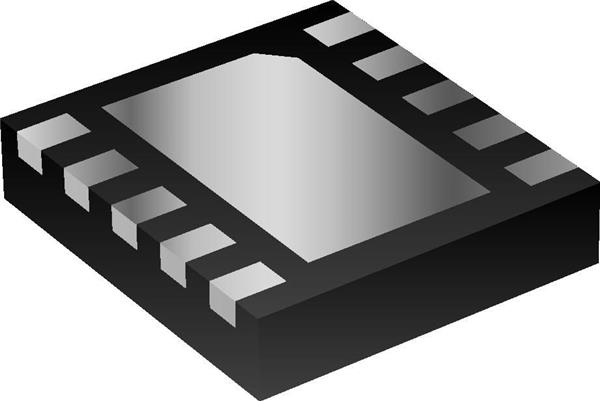

Bourns CDDFN10-0506N TVS Diodes 5volts 6 data lines

Polarity: Unidirectional

Unit Weight: 90 mg

Current Rating: 1 uA

Working Voltage: 5 V

Clamping Voltage: 10 V

Breakdown Voltage: 6 V

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 6 Channel

Vf - Forward Voltage: 800 mV

Cd - Diode Capacitance: 0.35 pF

Ipp - Peak Pulse Current: 3.5 A

Operating Supply Voltage: 6 V

Vesd - Voltage ESD Air Gap: 15 kV

Vesd - Voltage ESD Contact: 8 kV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Pppm - Peak Pulse Power Dissipation: 40 W
