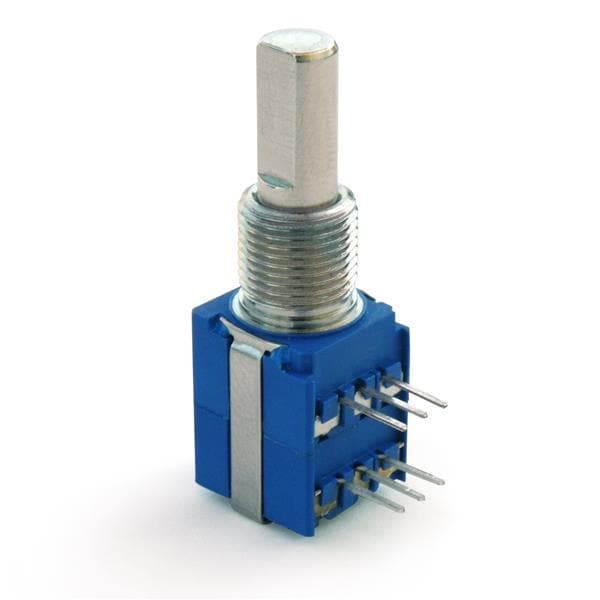

Bourns 56AAD-B24-B10/R81L Rotary PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN

Life: 50000 Cycle

Taper: Linear

Width: 12.5 mm

Height: 13.25 mm

Length: 16.51 mm

IP Rating: IP64

Tolerance: 20 %

Shaft Type: Smooth / Slotted

Orientation: Horizontal

Switch Type: Rotary Switch

With Switch: With Switch

Element Type: Conductive Plastic

Power Rating: 500 mW (1/2 W)

Shaft Length: 19.05 mm

Mounting Style: Panel Mount

Shaft Diameter: 6.35 mm

Number of Gangs: 1 Gang

Number of Turns: 1 Turn

Number of Detents: 1 Detent

Termination Style: Through Hole

Temperature Coefficient: 1000 PPM / C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: + 1 C
