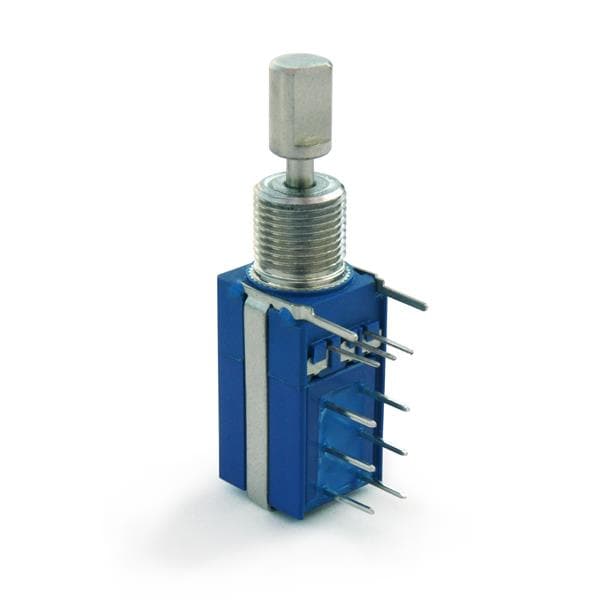

Bourns 54CAD-E28-S15/P50L Control Potentiometer

Life: 50000 Cycle

Taper: Audio

Width: 12.5 mm

Height: 13.24 mm

Length: 22.23 mm

IP Rating: IP64

Tolerance: 10 %

Resistance: 10 kOhms

Shaft Type: Smooth / Slotted

Orientation: Horizontal

Switch Type: Push-Pull Switch

With Switch: With Switch

Bushing Size: 6.35 mm

Element Type: Conductive Plastic

Shaft Length: 22.23 mm

Bushing Thread: 3.18 mm

Mounting Style: PCB Mount

Shaft Diameter: 3.18 mm

Number of Turns: 1 Turn

Termination Style: PC Pin

Temperature Coefficient: 1000 PPM / C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: + 1 C
