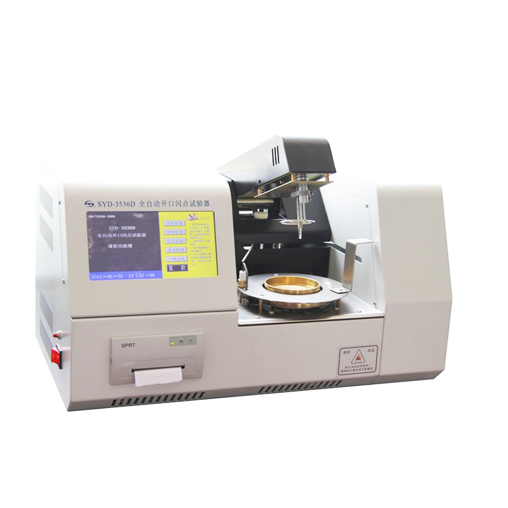

Bonnin SYD-3536D Fully-Automatic Cleveland Open-Cup Flash Point Tester (500W)

1. Power supply： AC（220±10%）V, 50Hz

2. Flash point determination： Range：Ambient to 400℃, Accuracy：0.1℃

3.Repeatability： ≤8℃(Flash point and fire point)

4.Reproducibility：Flash point≤17℃,Fire point ≤14℃

5. Heating rate： Correspond with GB/T3536 and ASTM D92

6. Igniting mode：Gas flame by electric ignition ,Gas flame diameter: 3.2mm～4.8mm

7. Ambient temperature：(10～40)℃

8. Relative humidity：≤80%

9. Maximum power consumption：500W

10. Dimension:

520mm×360mm×310mm (When test arm is not risen) ,

520mm×360mm×420mm (When test arm is risen)
