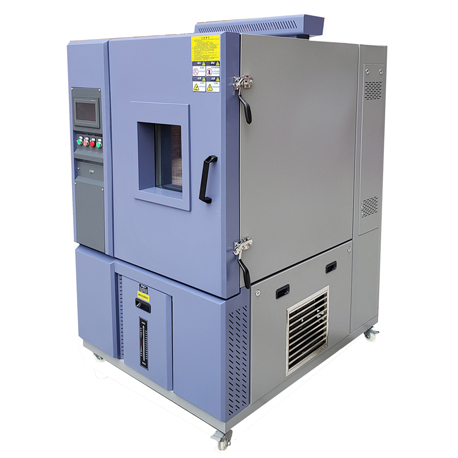

Bonnin BN-TH-80 Constant Temperature and Humidity Test Chamber (40*50*40)

Inner size WHD (cm): 40*50*40

External size WHD (cm): 60*161.5*120.5

Window Size WH (mm): 400*500mm

Test Hole: 2 holes

Size Diameter (mm): 50mm of each

Weight: 225KG

Temperature range: Low temperature (A:-20°C B:-40°C C:-60°C D:-70°C ) ~ +100℃/+150℃

Humidity range: 20%~98%R.H.(10%-98%R.H/5%~98%R.H)

Temp humidity analytic accuracy/uniformity: ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.

Temperature humidity control accuracy/fluctuation: ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.

Heat/cooling time: 4.0°C~15 °C /min; 4.0°C~15 °C /min

Inner and outer materials: SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.

Insulation materials: Resistant to high temp, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling system: Air cooling/single segment compressor(-20°C) , air and water double segment compressor(-40°C~-70°C)

Protection devices: Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system

Parts: Watching window,50mm testing hole, PL internal bulbs, partition plate,dry and wet ball gauze

Controller: TEMI” South Korea“TEMI” , Japan’s “OYO” Brand optional

Compressor: Original France“Tecumseh”brand

Power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
