Channel: 2 Channels with GPIB

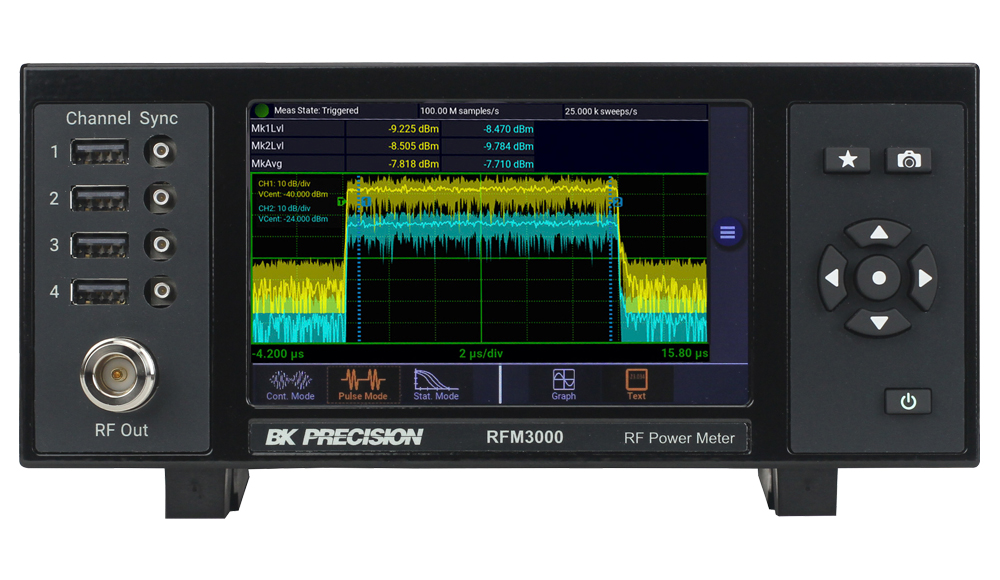

- Inputs/Outputs (front panel):
USB with SMB: trigger port 4 ports USB2.0: Type A receptacle, 4 ports SMB(f)
Test Source (optional rear panel placement): 50 MHz: 1.00 mW (0 dBm) ± 2.3% (0.1 dB) typical
- Inputs/Outputs (rear panel):
LAN 10/100 Ethernet: RJ-45 modular socket
USB with SMB trigger port: 4 ports USB2.0: Type A receptacle, 4 ports SMB(f)
Multi I/O Connector:
User Selectable Status, trigger, or voltage output
Range: 0 to 10 V (Analog unipolar) / -10 V to +10 V (Analog bipolar) / 0 or 5 V (Logic)
Accuracy: ±200 mV (±100 mV typical)
Linearity: 0.4% typical
- Remote Control:
Command Set SCPI-1999.0
LAN Ethernet: 10/100/1000 BaseT; HiSLIP
GPIB Optional
- General:
Power Requirements: 90 to 260 VAC, 47 to 60 Hz; 90 to 135 VAC, 47 to 400 Hz; 30 W (35 VA) max
Operating Temperature: 0 to 50 °C (32 to 122 °F)
Storage Temperature: -40 to +70 °C (-40 to 158 °F)
Humidity: 95% maximum, non-condensing
Altitude Operation: up to 15,000 feet (4600 m)
Shock Withstands: ± 30 G, 11 ms impulse in X, Y, and Z axes
Vibration Withstands: 2 G sine, 5 to 55 Hz; 2 G random, 5 to 500 Hz
Dimensions (excluding connectors): (H x W x D) 3.5" x 8.3" x 11.2" (89 x 211 x 284 mm)
Weight: 4.8 lbs (2.2 kg)
Included Accessories: Power cord
