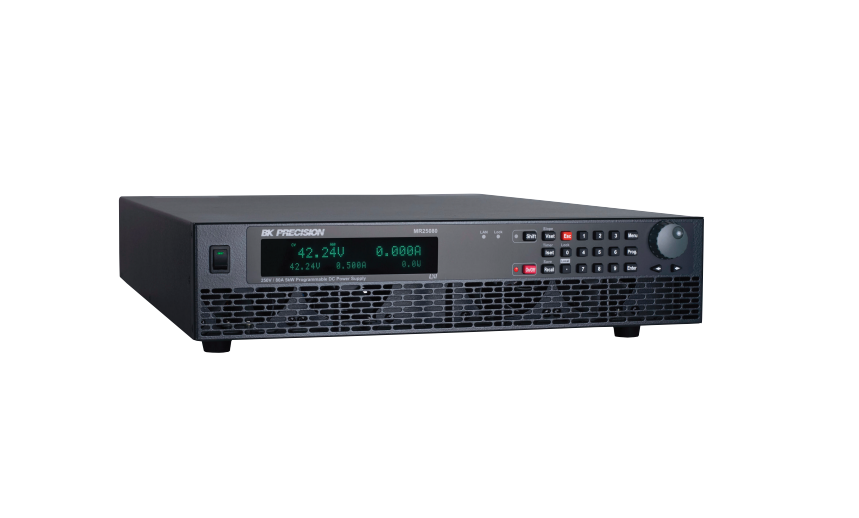

BKPRECISION MR100020 High Voltage Multi-Range DC Power Supplies (1000V, 20A, 5kW)

- Output Rating:

Output Voltage: 0 to 1000 V

Output Current: 0 to 20 A

Output Power: 5000 W

- Line Regulation:

Voltage: 80 mV

Current: 10 mA

- Load Regulation:

Voltage: 250 mV

Current: 25 mA

- Ripple and Noise (20 Hz to 20 MHz):

Voltage p-p: 700 mV

Voltage rms: 120 mV

Current rms(1): 5 mA

- Resolution:

Programming: 100 mV / 1 mA

Readback: 100 mV / 1 mA

- Programming Accuracy:

Voltage: 500 mV

Current: 25 mA

- Readback Accuracy:

Voltage: 500 mV

Current: 25 mA

- Output Response Time(2):

+ Rising Time:

Full Load: ≤ 30 ms

No Load: ≤ 30 ms

+ Falling Time:

Full Load: ≤ 50 ms

No Load: ≤ 10 s

- Protection:

+ OVP:

Range: 0 to 1100 V

Accuracy: 10 V

+ OCP:

Range: 0 to 24 A

Accuracy: 0.2 A

- General:

Remote Sense Compensation: 20 V

Transient Response Time(3): ≤ 1.5 ms

Command Response Time(4): 10 ms

Effciency(5): ≥ 85%

Power Factor: 0.99

I/O Interfaces:

Analog (Galvanically isolated DB25), USB

(USBTMC-compliant and virtual COM), RS232,

GPIB, LAN (1.5 LXI device specifcation 2016)

AC Line Input: 200 to 240 VAC ± 10%, 47 Hz to 63 Hz

AC Line Phase: Single phase

Maximum Rated Input Power: 6000 VA

Temperature Ratings:

Operation: 32 ºF to 104 ºF (0 ºC to 40 ºC)

Storage: -40 ºF to 185 ºF (-40 ºC to 85 ºC)

Temperature Coeffcient:

Voltage: 200 mV / ºC

Current: 8 mA / ºC

Dimensions (W×H×D): 16.5” x 3.5” x 21” (420 x 88 x 532 mm)

Weight: 38.6 lbs (17.5 kg)

Standard Accessories: Power cord, test report & certifcate of calibration

Optional Accessories: Rack mount kit (RKPVS)
