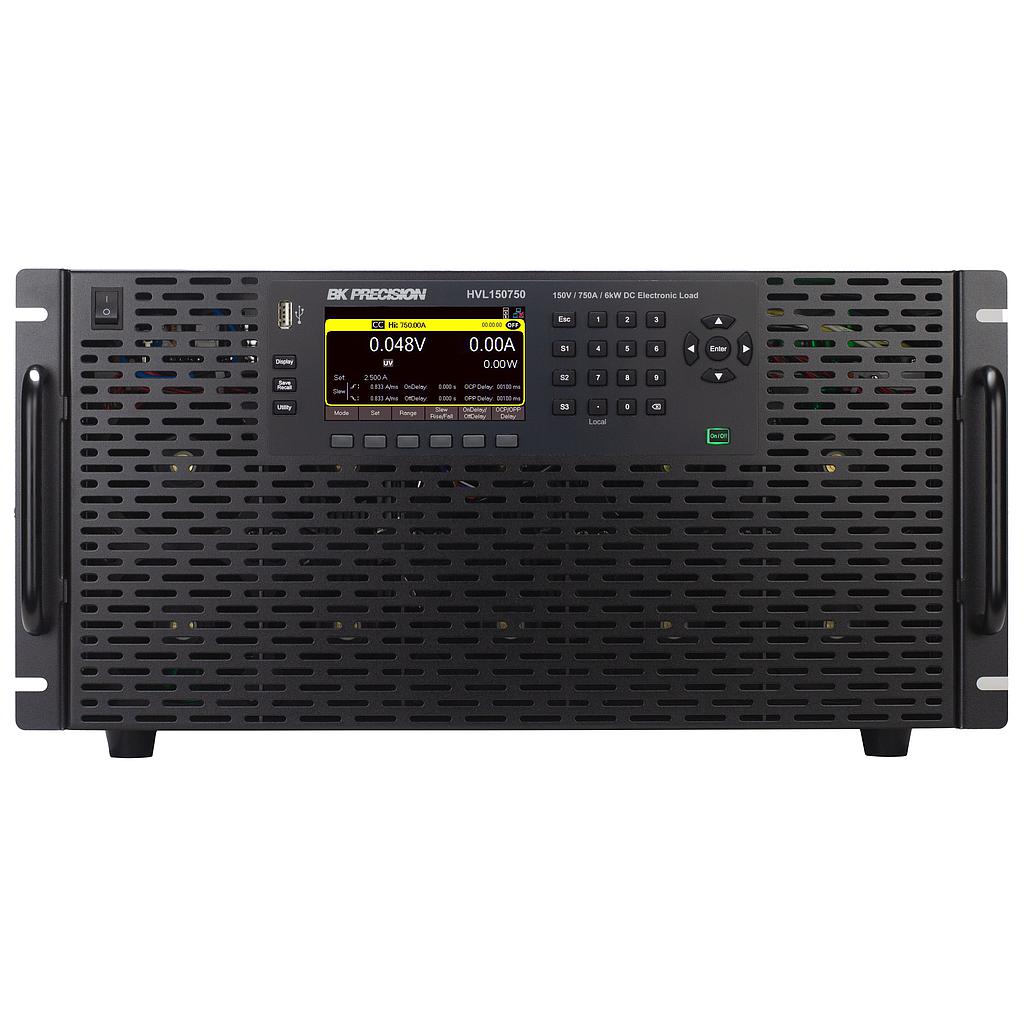

BKPRECISION HVL150750 Programmable DC Electronic Load (150 V, 750 A, 6 kW)

Input Ratings

Input Voltage : 0 to 150 V

Input Current : 0 to 750 A

Input Power : 6000 W

Minimum Operating Voltage : 1.5 V

CV Mode

Range (Low) : 0.15 V to 15.0 V

Range (High) : 0.15 V to 150 V

Programming Readback / Accuracy : ±(0.05% + 0.05% FS)

Resolution : 10 mV

CC Mode

Range (Low) : 0.75 A to 75 A

Range (High) : 0.75 A to 750 A

Programming Readback / Accuracy : ±(0.05% + 0.05% FS)

Resolution : 10 mA

CR Mode

Range : 2 mΩ to 200 Ω

Programming Accuracy : Vin > 4.5 V, Iin > 1.5 A : ±(0.2% / Rset + 0.2% × 750 A / Vin)

CW Mode

Range (Low) : 12 W to 6000 W

Range (High) : 12 W to 6000 W

Programming Accuracy : ±(0.2% + 1% FS)

Resolution : 10 mW

Transient Mode (CC Mode)

T1 & T2 : 100 μs to 10 s

Accuracy : ±(5 μs ± 100 ppm)

Slew Rate (Low) : 2.5 mA/μs to 37 A/μs

Minimum Rise Time : 25 μs

External Analog Programming

VMON Accuracy : ±20 mV

IMON Accuracy : ±20 mA

Isolation Voltage : 1500 V

Input Impedance : > 200 kΩ ± 5%
