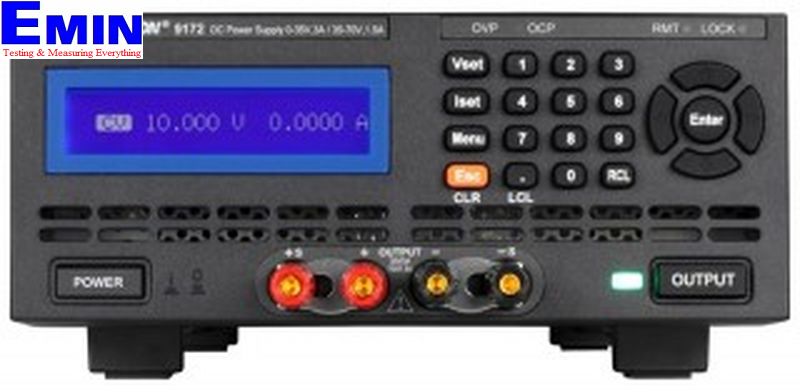

BK Precision 9172 Dual Range DC Power Supplies (Max 35V, Max 3A)

Name: BK Precision 9172 Dual Range DC Power Supplies (Max 35V, Max 3A)
Brand: BKPRECISION

ManufacturerBKPRECISION(View more products from this manufacturer)

Model9172

OriginTaiwan

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manuafacturer: BK PRECISION
Model : 9172
Original: Taiwan
Warranty : 12 month

Channels: 1
Output Low Range: 0-35 V, 0-3 A
Output High Range: 0-70 V, 0-1.5 A
Max Output Power: 105 W
Ripple and Noise: ≤ 5 mVpp, ≤ 2 mA rms
Resolution: 2 mV, 0.1 mA
Accuracy: ≤ 0.05 % +10 mV, ≤ 0.1 %+1 mA
Dimensions: 210 x 87 x 415 mm
Rack Mount Height: 2U
Weight: 7.7 kg
Standard Interface: USB, (other interface option)
Power Requirements: 115/230 VAC ± 10%, 47 Hz - 63 Hz
Included: User manual, AC power cord, USB cable (type A to type B), line fuse, certificate of calibration and test report

The 9170/9180 series programmable DC power supplies deliver clean, stable and precise output power due to the supplies’ exceptionally low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics.

These power supplies offer SCPI IEEE488.2 compliant USB (standard), RS232, RS485, GPIB and LAN interfaces, combined with front and rear panel output and remote sense terminals to facilitate test system development and integration. The LAN interface includes a built-in web server that allows users to configure, control, or monitor basic power supply settings.

In addition to a full numerical keypad for convenient data entry, this series also provides unique features not typically found in comparable power sources, such as LED test modes, modular interface card slots, automatic range selection, and an optional 8-bit bidirectional digital I/O interface.

Single and dual output models with up to 210W output power
Exceptionally low ripple and noise
Front and rear panel output
List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
Overvoltage/overcurrent/overtemperature protection (OVP/OCP/OTP) and key-lock function
Fast transient response time of < 50 us for most models
Programmable voltage and current slew rates
Standard USB interface
4 optional types of modular interface cards add LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232 functionality
LabVIEW (TM) drivers available

Model Guide
Model	9171	9172	9173	9174	9181	9182	9183	9184	9185
Voltage Ranges	10V, 20V	35V, 70V	10V, 20V	35V, 70V	18V, 36V	10V, 20V	35V, 70V	100V, 200V	400V, 600V
Max Current	10A, 5A	3A, 1.5A	10A, 5A	3A, 1.5A	8A, 4A	20A, 10A	6A, 3A	2A, 1A	0.5A, 0.35A
Number Outputs	1	1	2	2	1	1	1	1	1
