Output Voltage: 0~72V
Output current: 0~1.2A
Programming resolution: 2mV, 0.02mA
Readback/ Meter resolution: 0.5mV, 0.01mA
Programming accuracy: ≤ 0.03%+6mV, ≤ 0.05%+1mA
Readback/ Meter accuracy: ≤ 0.02%+5mV, ≤ 0.05%+1mA
Ripple & Noise: ≤ 5mVp-p, ≤ 3mArms
DVM meter: 0~40V
mΩ meter: yes
Power Requirements: 115V/220VAC
Dimensions: 214.5mm(W) x 88.2mm (H) x 354.6mm (D)
Weight: 9 kg
Included: User manual, power line cord, IT-E131 RS232 to TTL serial converter cable, IT-E132 USB to TTL serial converter, cable, software installation disk, and certificate of calibration

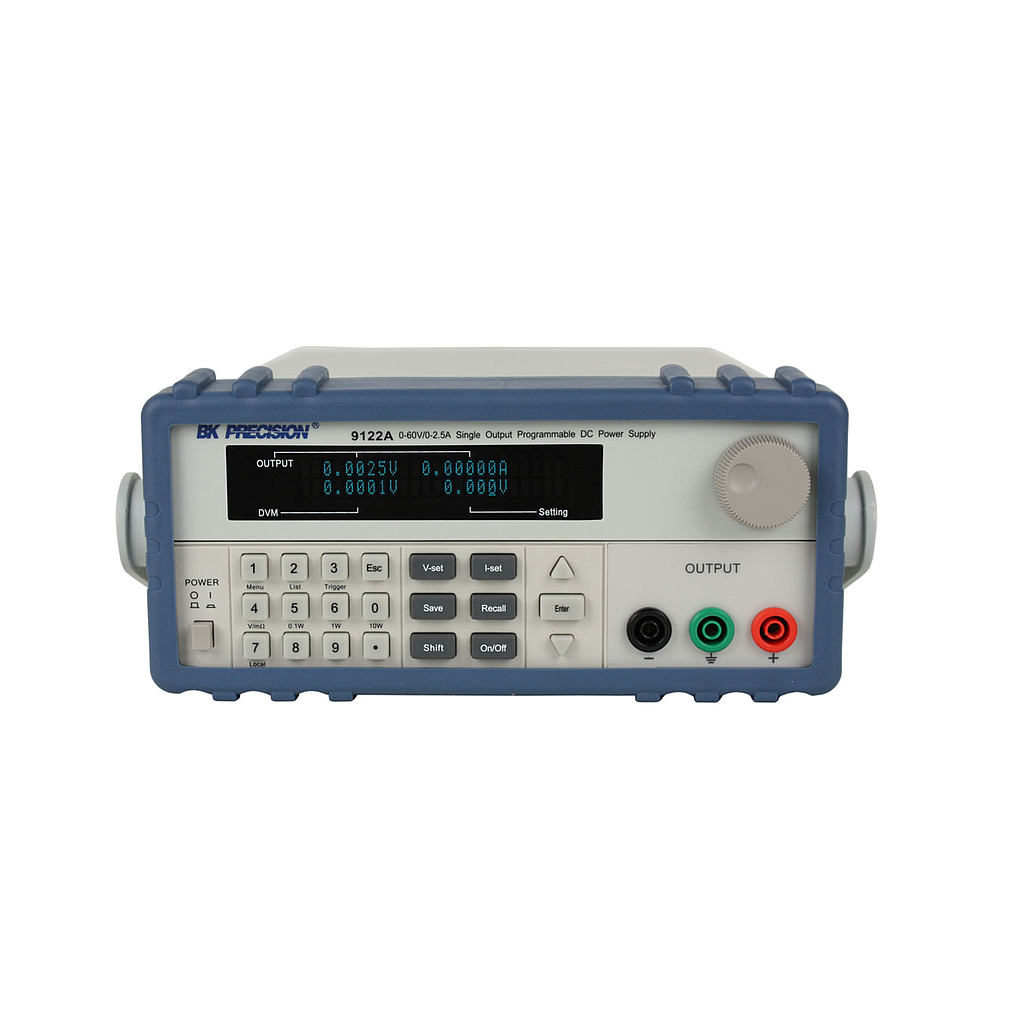

The 9120A series are laboratory grade, programmable DC Power Suppies providing great performance and features not found in other supplies in this price category. The power supplies were designed to meet the needs of today applications in R&D design verification, production testing or university labs that require clean and reliable power, high resolution/accuracy and fast transient response time.
| Model Guide | |||||
|---|---|---|---|---|---|
| Model | 9120A | 9121A | 9122A | 9123A | 9124 |
| Output Voltage | 0-32 V | 0-20 V | 0-60 V | 0-30 V | 0-72 V |
| Output Current | 0-3 A | 0-5 A | 0-2.5 A | 0-5 A | 0-1.2 A |
