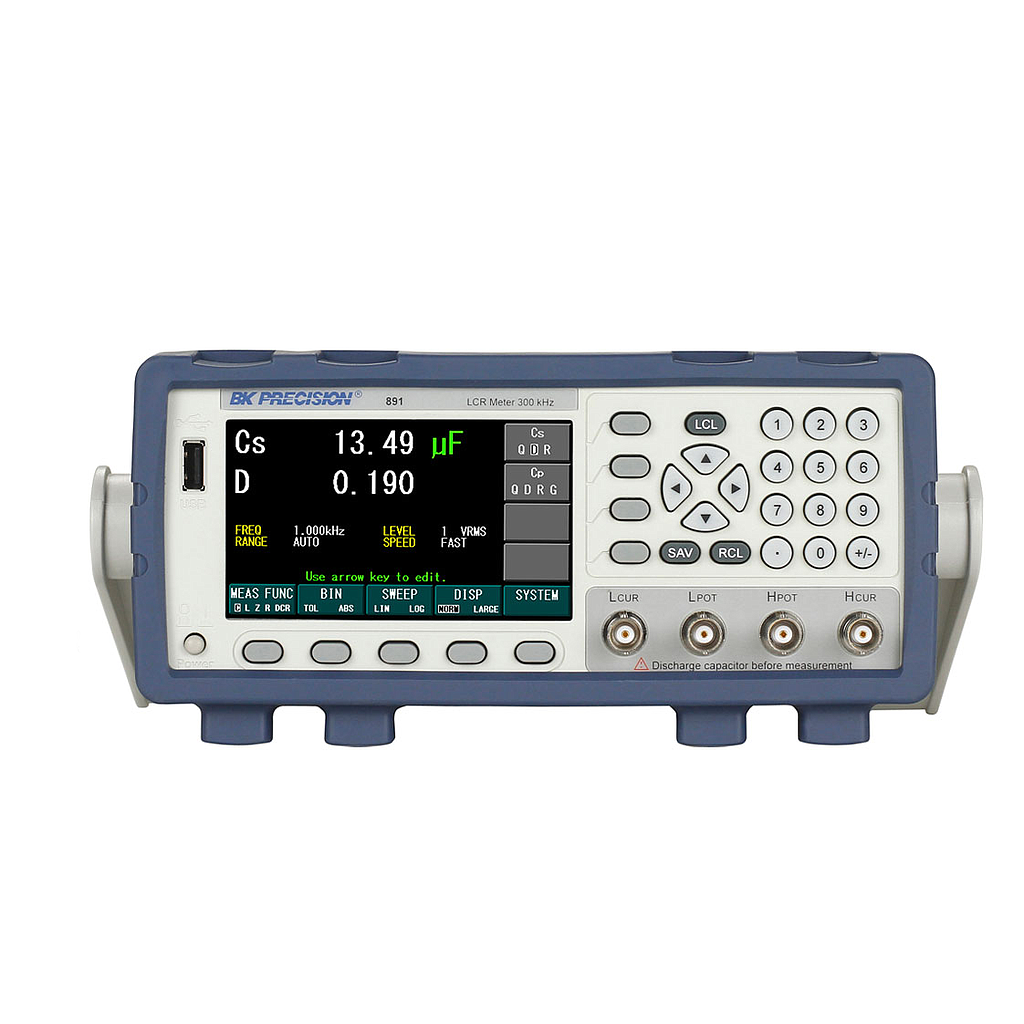

BKPRECISION 891 Bench LCR Meter (300 kHz)

Best accuracy 0.05%
Test frequency 20 Hz - 300 kHz
Test levels 0.5 Vrms and 1 Vrms selectable
Measurement parameters C/L/R/G/B/Y/D/Q/θ/DCR
Cs, Cp 0.000 F to ± 9999 F
Ls, Lp 0.000 H to ± 9999 H
Rs, Rp, R, Z 0.000 Ω to ± 9.999 GΩ
G, B, Y 0.000 S to ± 9.999 GS
D 0.000 to ± 9999
Q 0.000 to ± 9999
θ 0.000 ° to ± 180.00 °
DCR 0.000 Ω to ± 9.999 GΩ
Impedance: 0.1 Ω – 20MΩ
Dimension (L × W × H): 258 × 113 × 381 mm
Weight: 3.4Kg
Standard Accessories User manual, power cord, Kelvin clips (TL 889A), certificate of calibration & test report
Optional Accessories TL89F1 test fixture (axial and radial)

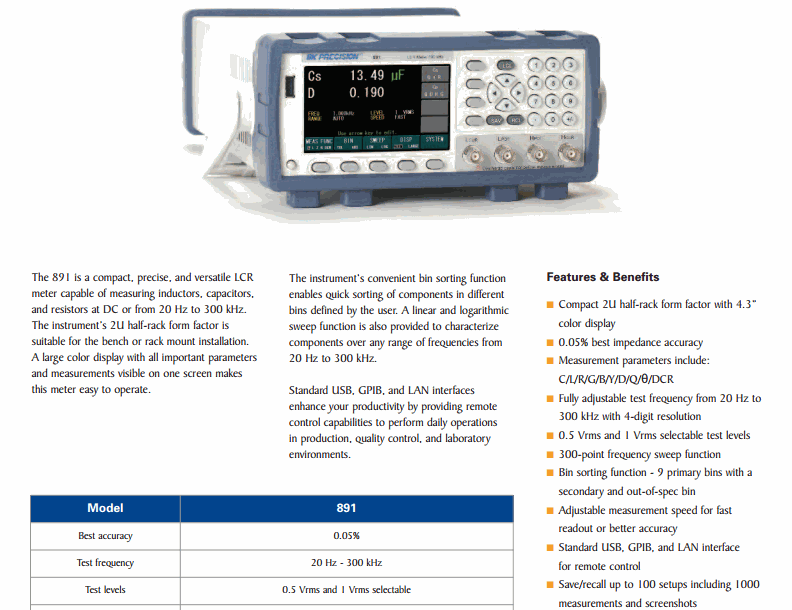

Datasheet
