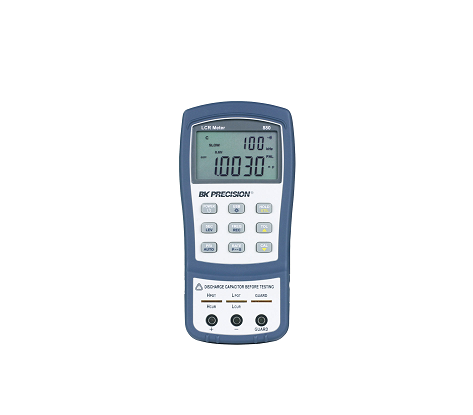

BKPRECISION 880 Handheld LCR Meter with ESR (100KHz)

- Measurement parameters: L/C/R/Z/DCR/D/Q/θ/ESR
- Test conditions: 100 Hz,120 Hz, 1 kHz, 10 kHz, 100 kHz
- Impedance (Z): 0.4 Ω -10MΩ
- Capacitance (C): 40 pF - 20 mF
- Inductance (L): 4 μH - 1000 H
- DCR: 0.4 Ω - 20MΩ
Power: DC 9V Battery ,
Dimensions (LxWxH): 190 × 90 × 41)
Weight: 348 g
Supplied Accessories:Banana-to-alligator test leads, Ni-MH 9 V battery, mini USB interface cable, Quick Start insert,
AC adapter* shorting plate, four-terminal shielded Kelvin clip test leads (TL8KC1), SMD tweezer (TL8SM

Datasheet

Manual
