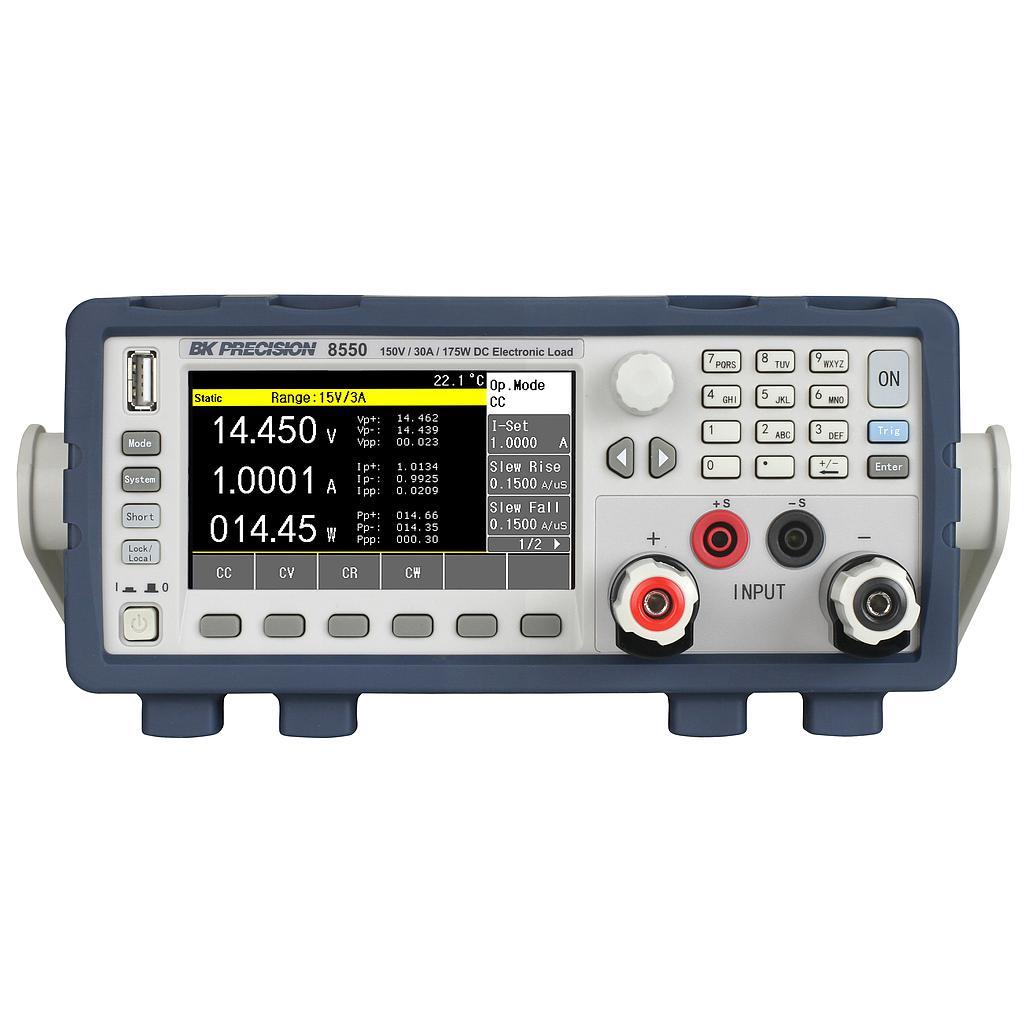

BKPRECISION 8550 Programmable DC Electronic Loads (150V /30 A, 175 W)

Input Ratings

Input voltage: 0 to 150 V

Input current: 30 A

Input power: 175 W

Mode: CV mode, CC mode, CR mode, CW mode

Readback Voltage:

Range: 0~15V; 0~150V

Resolution: 1mV, 10mV

Accuracy: ±(0.08% + 0.05% FS)

Readback Current:

Range: 0~3A; 0~30A

Resolution: 0.1 mV, 1mV

Accuracy: ±(0.08% + 0.05% FS)

Readback Ripple

Range: 0~15V; 0~150V

Bandwidth: 250 kHz

Accuracy: 0.1%

AC input: 110 V/220 V ±10%, 50 Hz/60 Hz ±5%

Dimensions: (W x H x D) 8.4” x 3.5” x 15.4” (213 x 88 x 390 mm)

Weight: 6.61 lb (3 kg)
