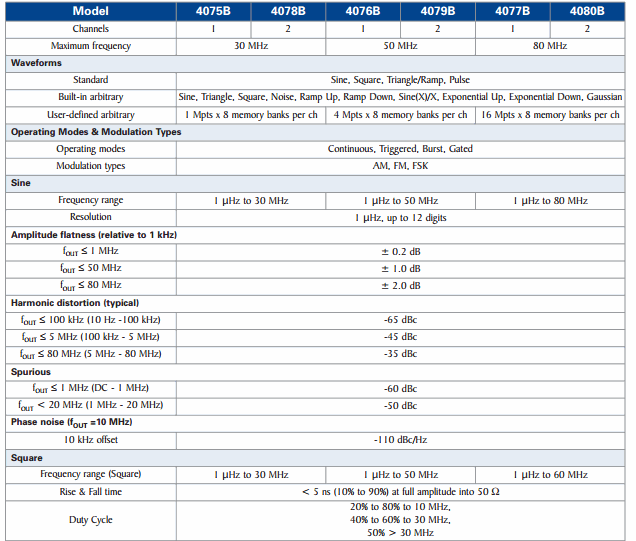

Maximum frequency 80 MHz
Channel: 2
Standard: Sine, Square, Triangle/Ramp, Pulse
Built-in arbitrary: Sine, Triangle, Square, Noise, Ramp Up, Ramp Down, Sine(X)/X, Exponential Up, Exponential Down, Gaussian
User-defined arbitrary 1 Mpts x 8 memory banks per ch
Operating modes Continuous, Triggered, Burst, Gated
Modulation types AM, FM, FSK
Sampling Rate 200 MSa/s, point execution rate adjustable from 5 ns – 100 s
Bandwidth 100 MHz max (2-point waveform length)
Display Resolution 400 x 240 dots
Storage Memory 50 full panel settings at power-off, including last working setup
Dimensions (W x H x D) 213 mm x 88 mm x 300 mm (8.4” x 3.5” x 12”)
Weight 3 kg (6.6 lbs)
AC Input 100 - 240 V ±10%, 50 - 60 Hz ±5% (<40 va="" br=""> Temperature 0° C to +50° C (operating)
-20° C to +70° C (non-operating)
Humidity
95% RH, 0° C to 30° C
75% RH to 40° C
45% RH to 50° C
EMC According to EN55011 for radiated and conducted emissions
Electrical Discharge Immunity According to EN55082
Safety Specifications According to EN61010, CE approved
Included Accessories Power Cord, Manual on CD, USB Type A to Type B Cable, Certificate of Calibration
Discontinued
