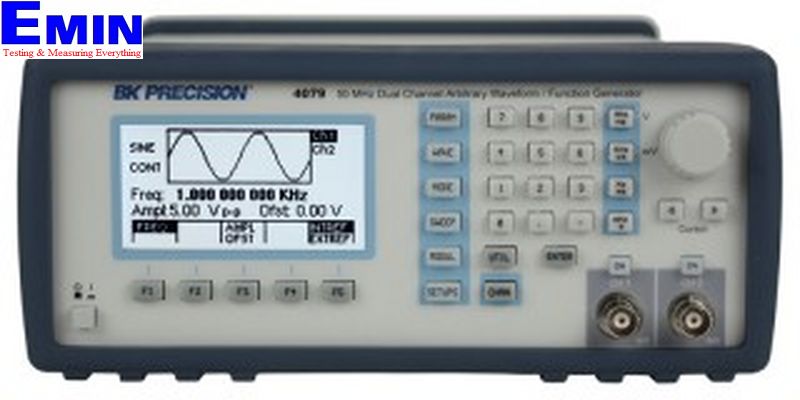

BK Precision 4072 Arbitrary Waveform / Function Generators (50 MHz, 2CH)

Manufaturer: BK Precision - USA
Model: 4079
Channels: 2
Sine: 1 µHz to 50 MHz
Square: 1 µHz to 50 MHz
Triangle, Ramp: 1 µHz to 5 MHz
Pulse: 0.5 mHz to 25 MHz
Accuracy: 0.001 % (10 ppm)
Resolution: 12 digits or 1 µHz
Built-in Waveforms: Sine, Triangle, Square, Noise, Ramp Up, Ramp Down, Sine(X)/X, Exponential Up, Exponential
Down, Gaussian
Amplitude Range: 10 mV to 10 Vp-p into 50 Ω
Operating Modes: Continuous, Triggered, Gate, Burst, Phase, Trigger Source
Modulation: Amplitude, Frequency, FSK
Trigger IN: TTL Compatible
Sync OUT: TTL pulse at programmed frequency , 50 Ω source impedance
Modulation IN: 5 Vp-p for 100% modulation
Marker Out: Positive TTL pulse user programmable in Arbitrary
Reference IN-OUT: 10 MHz, TTL compatible, input or output,
Summing IN: Adds signal from an external source to the main output. Input impedance is 500 Ω
Internal Trigger: 1 ms to 100 s
Display Resolution: 160 x 80 dots LCD
Remote Control Interface: GPIB, RS-232
Dimensions: 8.4(213) x 3.5(88) x 10.8(275) inches (mm)
Weight: 2.5 kg
Power: 100-240 VAC
Include: CD containing user manual & Wave-X software, null modem serial interface cable, power cord
