Number of Outputs: Three (two variable and one fixed)
Output Voltage: 0 to 24 VDC (A & B), 5 VDC (C)
Output Current: 0 to 500 mA (A & B), 4 A (C)
Ripple & Noise: <2 mvrms="" 3="" ma="" rms="" br=""> Display: dual 3-digit LED
Power Requirements: 120/220, +10%, 50/60 Hz
Power Consumption: 165 W
Dimensions: 140 x 298 x 264 mm
Weight: 4.8 kg
Included Accessories: 3 sets of hook-up cables, power cord, sapre fuse & instruction manual

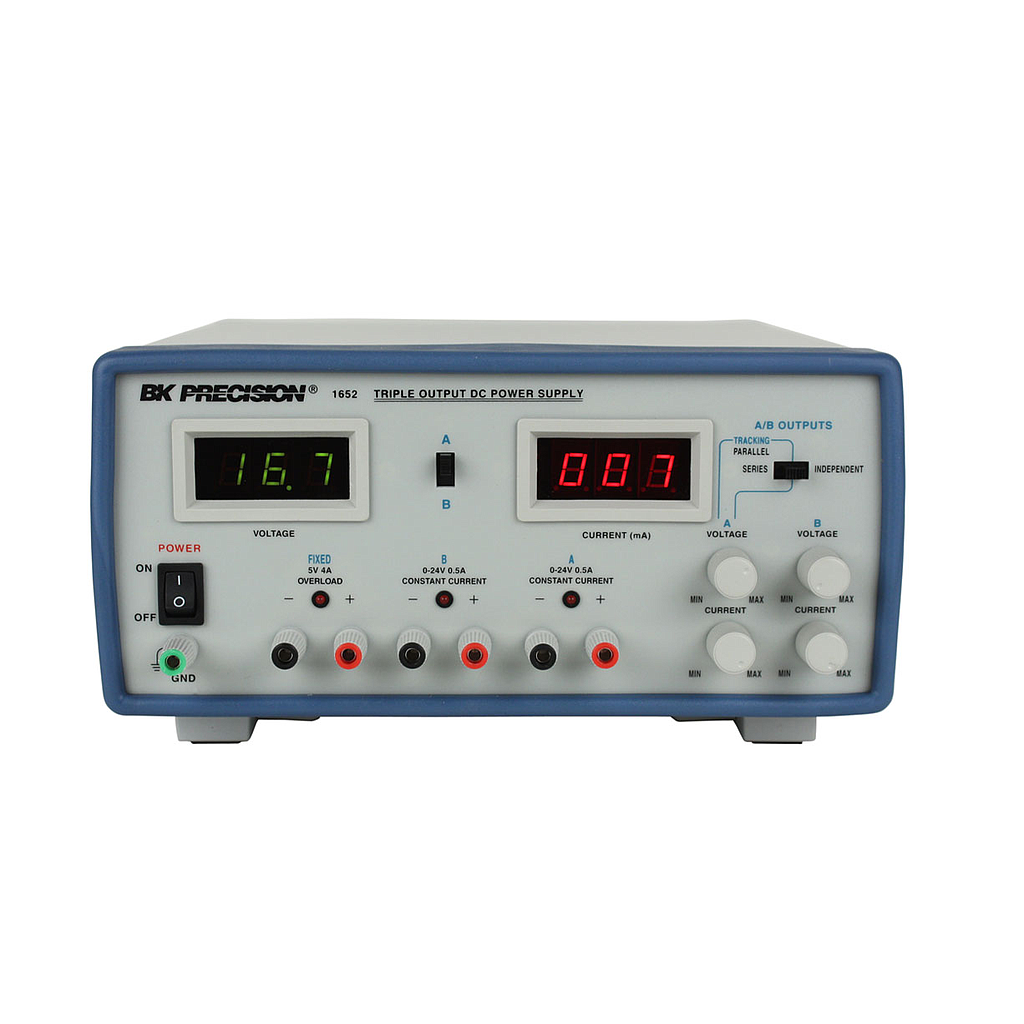

The 1651A and 1652 triple output DC power supplies have two 0 to 24 VDC outputs capable of supplying 0 to 500 mA, and one fixed 5 VDC output capable of supplying up to 4 A. Connect outputs in series for higher voltage or connect in parallel for higher current output (selectable via tracking mode switch). Voltage and current for variable outputs are continuously monitored on two analog (1651A) or two digital (1652) displays. These power supplies also provide reverse polarity, overvoltage, and current limiting protections.
| Model Guide | ||
|---|---|---|
| Model | 1651A | 1652 |
| Voltage (variable outputs) | 0-24 V | 0-24 V |
| Current (variable outputs) | 0-500 mA | 0-500 mA |
| Fixed output | 5 V / 4 A | 5 V / 4 A |
| Display | Analog | Digital |
