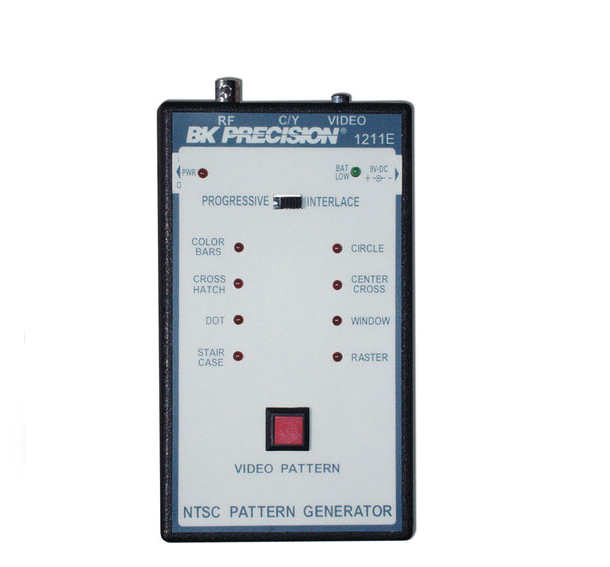

BK Precision 1211E Handheld NTSC Generator

- Color Bars: White, Yellow, Cyan, Green, Magenta, Red, Blue, and Black
- Chroma: Auto/Manual
- Staircase: Linear staircase signal with 5 equal steps from black to white
- Rasters: White, Red, Green, Blue, Yellow, Cyan, Magenta, and Black
- Window: White window on black background
- Convergence : 5 vertical x 11 horizontal, white dots on black raster, white lines on black raster, Centering Box on screen
- RF Output Channels: CH3 = 61.25MHz, crystal controlled
- S-Video: Chrominance Output: 0.75V p-p into 75Ω
- Composite Video: 1.2V p-p into 75Ω
- Power Source: 9V battery or AC Adapter (option)
+ Dimensions 38 x 97 x 145mm
+ Weight: 9.6oz. (272g)
