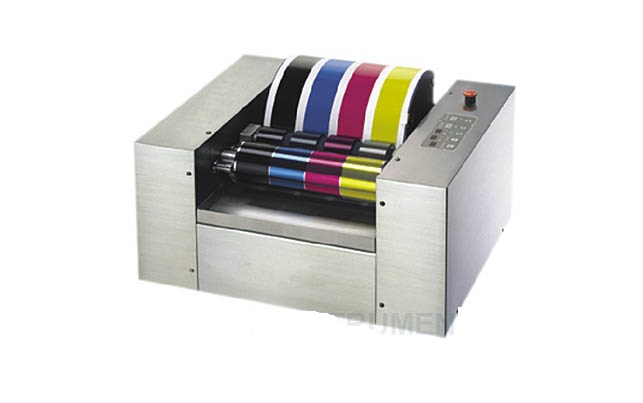

Biuged BGD 626 Multi-section Ink Printing Proofer (1 ～120 s)

■ Effective size of Coloured Strips：106mm×215mm（two colours）；106mm×215mm/45mm×215mm（three colours）；45mm×215mm（four colours）

■ Printing Rubber：Common rubber or special rubber for UV ink （either-or）

■ Speed of Distributing Ink：There are three different speeds （550; 700; 900 rpm）on the control board.Operator also can dismantle shell of machine to do stepless speed regulation.

■ Printing Speed：There are three different speeds （10; 16;22 rpm）on the control board.Operator also can dismantle shell of machine to do stepless speed regulation.

■ Distributing Ink Time：1～120 second (adjustable)

■ Print Pressure：Can be adjusted precisely externally according to the substrate thickness（±0～800g）

■ Distributing Ink Pressure：Can be adjusted precisely externally according to the rubber using status

■ Power Supply：AC 220V/50HZ；Power：250W（saving electrical power design）

■ Dimensions of Machine：525mmX430mmX280mm

■ Weight：75KG
