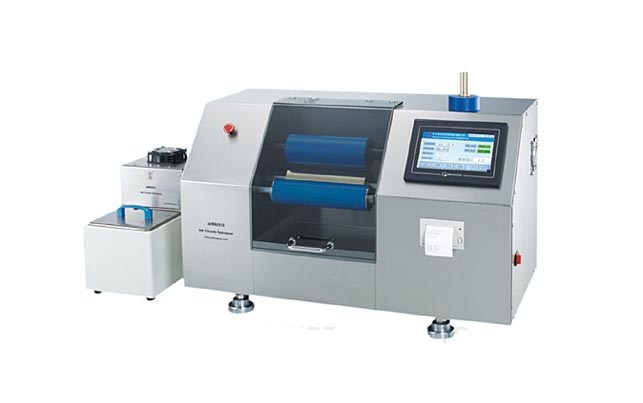

Biuged BGD 615 Intelligent Inkometer (400 RPM, 800 RPM, 1200 RPM, 1600 RPM, 2000 RPM)

■ Brass roller speed range: 400 RPM，800 RPM，1200 RPM，1600 RPM， 2000 RPM;

■ Additional: Roller Testing Speeds - Programmable 100 to 2000 RPM（3000 RPM Optional customized）

■ Brass Roller Lateral Error: ± 0.03mm after leveling on workbench

■ Thermostatic Bath Pump Flow: 10L/minute（Bath capacity：8L）

■ Temperature Error: ±0.1 °C

■ Display Resolution: 0.1 unit of ink viscosity

■ Testing Accuracy: ± 0.3 unit of ink viscosity （same testing condition）

■ Printing: Testing time, number, temperature, speed, viscosity values

■ Accessory: With a piece of ink injector which is very easy to dismantle and install

■ Power Supply : 220 V, 50/60 Hz

■ Total Power: 1600W （motor 800W, water tank 800W）

■ Noise : ≤50 db

■ Dimensions: 750mm x300mmx480mm

■ Net weight: 130 KG

Datasheet
