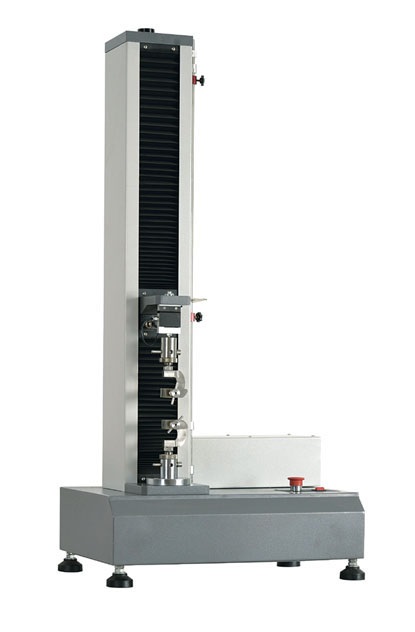

- Computer Servo Tensile Machine (Single Column)
Power system: Fuji servo machine
Max. Range （Optional）: 50N, 100N, 200N, 500N, 1KN, 2KN
Convertible Units: g，kg, N, LB（supply with three units which include international standard, metric, inch, they can convertible by automatically）
Measuring Range of Test Force: 1%～100% FS (full range)
Display Error of Test Force: ≤ ±1%
Resolution of Test Force: 1/500.000
Resolution of Displacement: 0.015μm
Displacement Display Error: ≤ 0.2%
Max. Space of Tension: 800mm (clamp is not included)
Test Speed: 0.01-500mm/min （stepless speed regulating）
Valid Test Width: unlimited
Overall Size（L×W×H）: 450×550×1350mm
Weight: 100 KG
Power Supply: 220V/50HZ；15A or designation
Power: 400W
