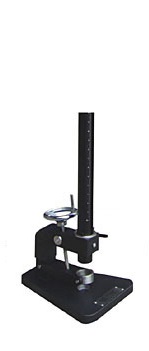

Biuged BGD 306 Impact Tester (ISO Impact Tester)

Features:

◆ Ring slot（stops） for height limitation, convenient for operator to adjust different impact depth.

◆ The aluminum oxid guide tube is produced by special technology, never fade and rust.

◆ Guide tube is produced by special mould, the gap with weight is controlled precisely.

◆ Come with Calibration Certificate.

Instrument scale length: 0-100cm（40 inch）

Graduation: 1cm

Falling Weights:

◆ Main weight with indenter：1000g（1 pc）

◆ Additional weight：1000g（1 pc）

◆ Additional weight：2000g（1 pc）

Indenter Diameter: Ф 20 mm

Die inside Diameter: Ф 27 mm

Standards: ISO 6272.1
