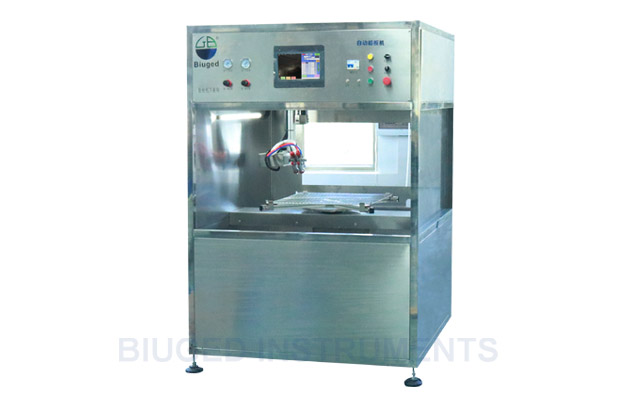

Biuged BGD 227/H Horizontal Automatic Panel Spray Cabinet (0-500mm/s; 1.5KW)

■ Max. Spraying Area: 620mm × 720mm, sample tray can rotate 360 degrees;

■ Gun Moving Speed: 0-500mm/s;

■ Spraying Distance: 95mm-215mm (can be adjusted)

■ Rotation Angle of Spray Gun: ±50°

■ Spray Gun: 2pcs, semi-automatic

■ Overall Size: 1260mm×1300mm×1860mm (W×D×H)

■ Air Outlet Pipe Diameter: 200mm (also can be customized)

■ Power Supply: 220V; 50HZ

■ Total Power: 1.5KW;

■ Net Weight: 220KG

■ Main Cabinet Material: simple welding with 304# stainless steel, glass door in front, totally enclosed.

Datasheet
