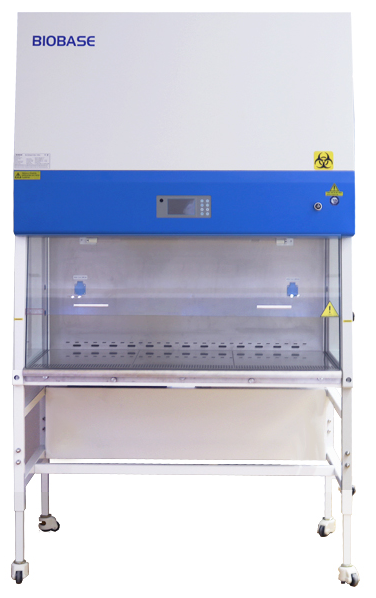

BIOBASE BSC-4FA2(4') Class II type A2 Biosafety cabinet (Class 2, A2)

Manufacturer: BIOBASE

Model: BSC-4FA2(4')

Origin: China

Warranty: 12 months

- Large LCD color display, all information displayed.

- Automatic air speed adjustable with filter block.

- With memory function in case of power-failure.

- Two-sided glass window, easy to observe

- Unibody design. Work table is made up of 3pcs stainless steel, easy to disassemble and clean.

- Separation design between cabinet and base stand. The height of the adjustable base stand can be customized.

- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

- Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

External Size(W*D*H):1383*775*2275~2425mm

Internal Size(W*D*H):1280×600×660mm

Work Surface Height:760~910mm

Max Opening:490mm (19’’)

Tested Opening:Safety height 200mm (8’’)

Airflow Volume:Inflow:489m3/h(288cfm); Down flow:65%:913m3/h(537cfm); Exhaust:35%:489m3/h(288cfm)

Front Window:Manual. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter :Two, 99.999% efficiency at 0.3um, filter life indicator

Filter Guard Type:Aluminum alloy frame

Noise:NSF 49≤67 dB/EN 12469≤65 dB

Illumination:≥1000Lux

Display:LCD Display

Waterproof Socket :2, Total consumption:≤500W

Tap:Water tap*1, Gas tap *1

Ground Resistance:≤ 0.10Ω

Power Supply:AC230V, 50Hz

Consumption:≤600W

Alarm:Abnormal airflow velocity; Filter replacement; Front window at unsafe height

Motor:One ECM motor, 110V& 220V acceptable, Speed adjustable,

high efficiency and low power consumption

Material:Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating

UV Lamp :30W; Germicidal UV lamp, Emission of 253.7 nanometers for most efficientdecontamination

Illuminating Lamp:16W*2; LED lamp

Package Size (W*D*H):1540*1080*1900mm

Gross Weight:334kg

Standard Accessory:Illuminating lamp, UV lamp *2, Manual adjustable base stand, SS water & gas taps, Drain valve, Waterproof sockets,Stainless Steel I.V. Bar with10 hooks.

Optional Accessory:Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Electric height adjustable base stand, Remote control, Motorized front window
