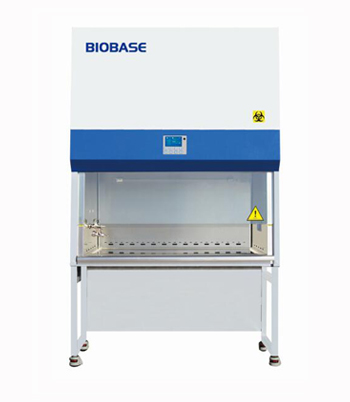

BIOBASE BSC-3FA2 (3') Biological Safety Cabinet

Manufacturer: BIOBASE

Model: BSC-3FA2 (3')

Origin: China

Warranty: 12 months

Features:

- Manual front window.

- Large LCD display, all information displayed.

- Automatic air speed adjustable with filter block.

- Side & back wall is made up of single piece stainless steel.

- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

- Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

External Size(W*D*H):1087*775*2265mm

Internal Size(W*D*H):910*600*660mm

Work Surface Height:750mm

Max Opening:520mm (21’’)

Tested Opening:Safety height 200mm (8’’)

Airflow Volume:

- Inflow:348m3/h(205cfm)

- Down flow:65%:649m3/h(382cfm)

- Exhaust:35%:348m3/h(205cfm)

Front Window:Manual. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter :Two, 99.999% efficiency at 0.3um, filter life indicator

Filter Guard Type:Aluminum alloy frame

Noise:NSF 49≤61 dB/EN 12469≤58 dB

Illumination:≥1000Lux

Display:LCD Display

Waterproof Socket :2, Total consumption: ≤500W

Tap:Water tap*1, Gas tap *1

Ground Resistance:≤ 0.10Ω

Power Supply:AC230V, 50Hz

Consumption:≤500W

Alarm:Abnormal airflow velocity; Filter replacement; Front window at unsafe height

Motor:One ECM motor, 110V& 220V acceptable, Speed adjustable,

high efficiency and low power consumption

Material:Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating

UV Lamp :18W; Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Fluorescent lamp:21W*2

Package Size (W*D*H)1220*1000*1840mm

Gross Weight:270kg

Standard Accessory

waterproof sockets 2pcs

Base stand 1pc

Fluorescent lamp 2pc

Drain valve 1pc

UV lamp 2pc

SS water & gas taps

Stainless steel I.V. bar with 10 hooks

Optional accessory

Armrest 1pc

Formalin fumigation sterilizer 1pc

Infrared sterilizer 1pc

Airflow tester 1pc

Remote control 1pc

Electric height adjustable base stand

Motorized front window

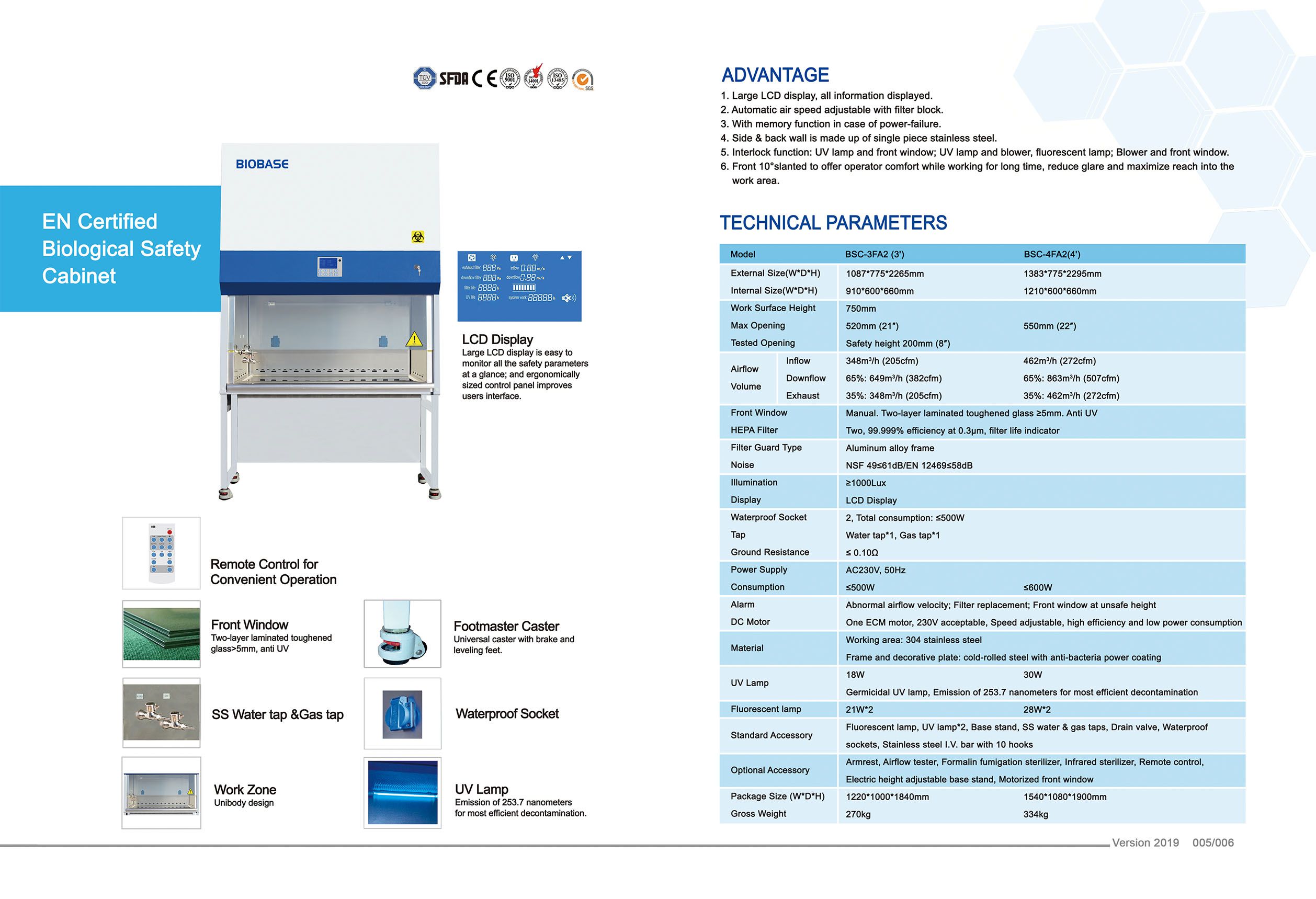

Brochure
