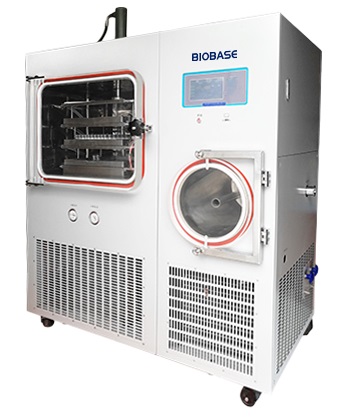

BIOBASE BK-FD100S Pilot Freeze Dryer

1. Pre-freezing, drying in-situ, easy to operate, good drying effect.

2. Inflatable (discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

4. 7-inch true color touch screen.

5. Can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

6. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

7. Flexible manual + automatic control mode, manual mode used for groping process, automatical mode used for batch production.

8. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

9. User level and password can be set and decentralized for operation management.

Freeze Drying Area : 1.04m2

Shelf Temperature : -50℃～+70℃(no-loading)

Cold Trap Temperature : <75℃(no-loading)

Vacuum Degree : ≤5 Pa(no-loading)

Water Capture Capacity : ≥15Kg

Cold Trap Volume : 70L

Cold Trap Size (Diameter*H) : Φ400*560mm

Drying Chamber Size (W*D*H) : 410*580*520mm

Shelf & Tray Size (W*D*H) :

+ Shelf:480*360*18mm

+ Tray: 475*355*25mm

Qty. Of Shelf & Tray :

+ Shelf: 6+1,Tray: 6

+ Shelf: 4+1,Tray: 4

Sample Loading Capacity (Liquid) : 10L

Height Between Trays : 70mm

Tray Temperature Difference : ±1℃

Refrigerant : R404A + R23

Condenser Cooling Mode : Air cooling

Defrost Mode : Electric defrosting

Stoppering Mode : No

Vacuum Pump : 15L/S(54m3/h)

Electric Defrosting Consumption : 1500W

Silicone Oil Heating Rods Consumption : 1600W

Total Consumption : 6.5KW

Power Supply : AC380V, 50Hz/60Hz (three phase)

Main Body Weight : 700kg

External Size (W*D*H) : 1170*830*1665mm

Packing Size (W*D*H) And Gross Weight :

+ Main Body : 1320*990*1855mm /900kg

+ Vacuum Pump : 785*455*300mm (95kg)
