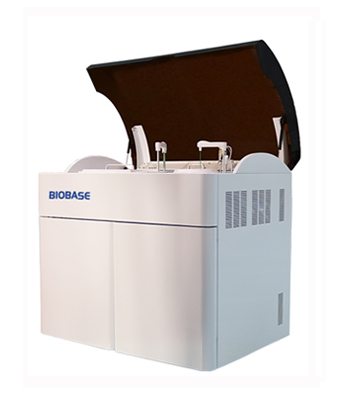

BIOBASE BK-480(RUBY) Auto Chemistry Analyzer

Manufacturer: BIOBASE

Model: BK-480(RUBY)

Origin: China

Warranty: 12 months

Features: 120 Sample positions; 90 Reagent positions; 90 Reaction cuvettes; 400 Tests /Hour

Type:Vertical,Discrete,Fully automatic

Throughput:400T/H

Analysis: MethodEnd-point,kinetic,Two-point

Sample & Reagent Unit

Sample Positions:120 sample positions

Reagent Positions:90 pcs (With refrigerated function)

Sample Volume:2-30ul,0.1μl step

Reagent Volume:20-300μl,1μl step

Sample& Reagent Probe: Automatic liquid level detecting; Collision protection function; Probe internal/external washing; Probe deepth automatic adjustmen

Probe cleaning:Automatic washing both interior and exterior

Reagent tray cooling:Continuous 2℃~8℃ cooling within 24 hours

Reaction Unit

Reaction Time:10 minutes

Temperature Control:37±0.1℃,automatic heating

Cuvettes:90 reusable reaction cuvettes

Washing:After finishtesting, washing probe wash cuvettes automatically

Light Source:Halogen-tungsten lamp

Wavelength:340-700nm,8 wavelengths,(4 positions are optional)

Absorbance range :0-4.00Abs

Linear Range:0.0001Abs

Intelligent software:Automatic washing cuvette when start test&finish test，Automatic detect sample& reagent volume，Reaction temperature detecting when startup

Alarm:Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent

Software:Windows 7,Windows 8 or above, windows XP

Power Supply:AC110/220V,±10%, 50/60Hz,1000VA

Package Size(W*D*H):1220*1340*890mm

Gross Weight:200kg

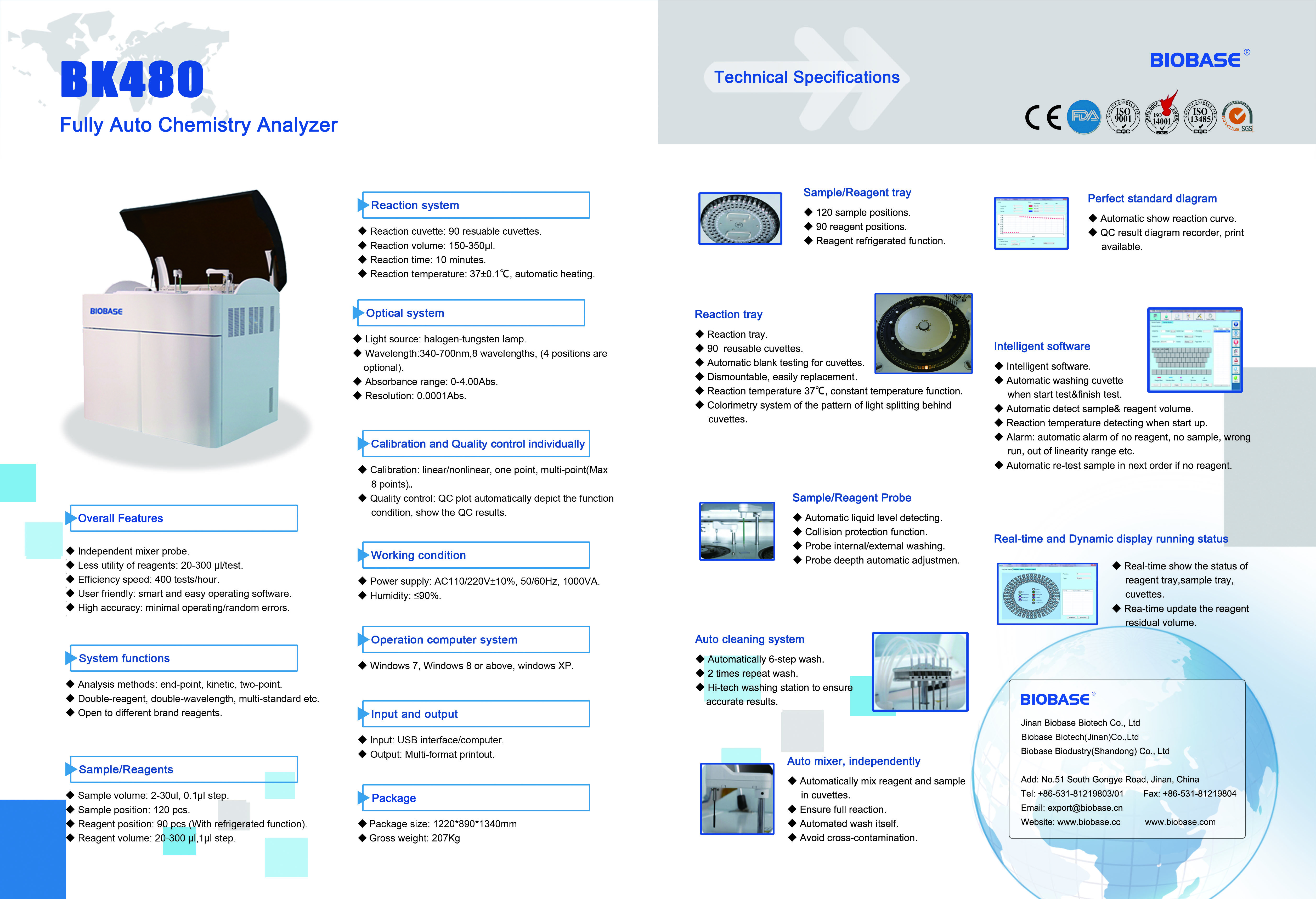

Brochure
