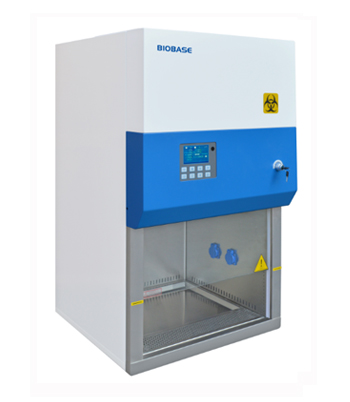

BIOBASE 11231BBC86 Biological Safety Cabinet (Class II, A2 )

Manufacturer: BIOBASE

Model: 11231BBC86

Origin: China

Warranty: 12 months

- Small dimension, save space.

- Centrifugal fan, speed adjustable; H14 HEPA filter.

- Motorized front window: The front window is motorized for convenient, one-hand operation.

- Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height.

- Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

- Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

- Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

- With memory function in case of power-failure.

External Size(W*D*H):700*650*1230 mm

Internal Size(W*D*H):600*500*540 mm

Tested Opening:Safety Height ≤ 200 mm(8’’)

Max Opening:370mm(15’’)

Inflow Velocity:0.53±0.025 m/s

Down Flow Velocity:0.33±0.025 m/s

HEPA Filter:Two, 99.999% efficient at 0.3μm. Filter life indicator.

Front Window:Motorized. Toughened glass. Anti UV.

Noise:EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp:15W*1; UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

LED Lamp:8W*2

Illumination:≥1000Lux

Consumption:500W

Socket:Two, total load of two sockets: 500W

Display:LCD display

Control System:Microprocessor

Airflow System:70% air recirculation, 30% air exhaust

Visual and Audio alarm:Filter replacement, window over height, abnormal air flow velocity.

Material:

-Work Zone: 304 stainless steel

- Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height:750mm with optional base stand

Power Supply:AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Gross Weight without Base Stand:Wooden: 164kg; Carton:121kg

Gross weight with Base Stand:Wooden:196kg

Package Size without Base Stand (W*D*H):Wooden:860*800*1450mm Carton:820*760*1430mm

Package Size with Base Stand (W*D*H):Wooden: 860*960*1450mm

Standard Accessory:

LED lamp 2pc

UV lamp 2pcs

Remote control 1pc

Waterproof sockets 2pcs

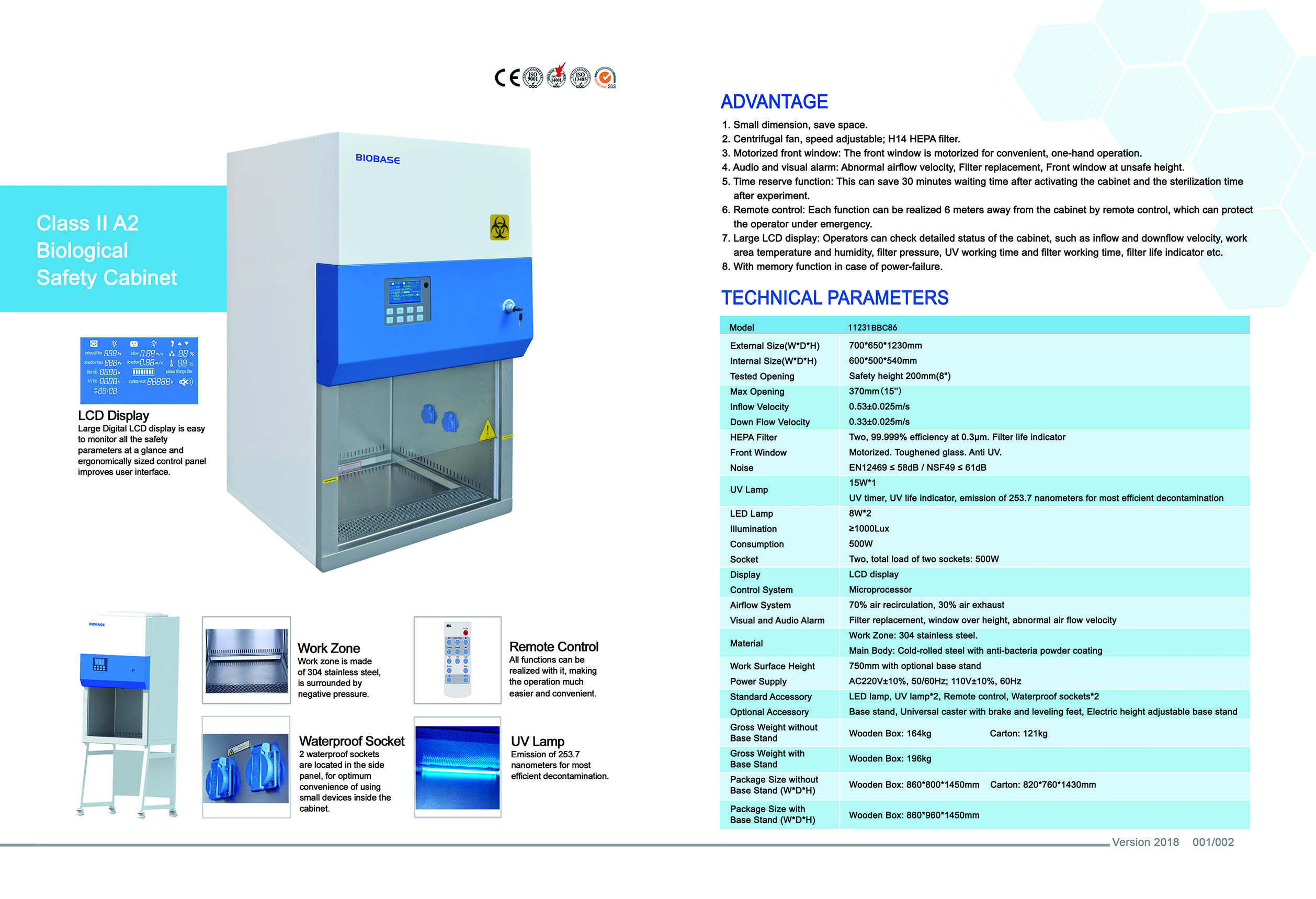

Brochure
