Functional Description:
Standard Phasing Meter
Phase Secondary Voltages
Phase Capacitive Test
Points
*Test Lightning Arrestors
Test Regulators off Neutral
Measure and Discharge DC voltage on capacitor banks
Measure DC Voltages up to 25kV
Measure at any Frequency Range up to 400Hz
*Hi-Pot URD Cable
*Cable Identifier
*Identify Phase Sequence from 120/208 Volts to 25kV
Minimum Operating Temperture: 0 degree Fahrenheit (-18 degrees Celsius)
Maximum Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius
Maximum Operating Range: 1000 ft. of Interconnect Cable (305 meters)
DC specifications: 0 – 25kV with +/-1% Accuracy throughout Ranges
AC specifications: 0 – 25kV with +/-1% Accuracy throughout Ranges
Physical Dimensions: Meter Probe, 14.5 in. long (36.8 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)
Weight: 2 lbs. (.9 kilograms) Meter Probe, .5 lbs. (.225 kilograms) Second Probe
* Additional accessory required

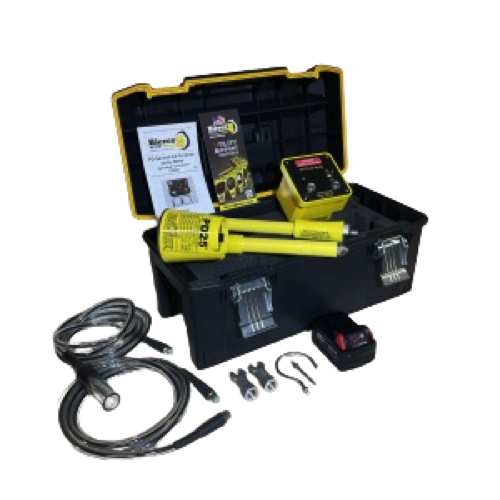

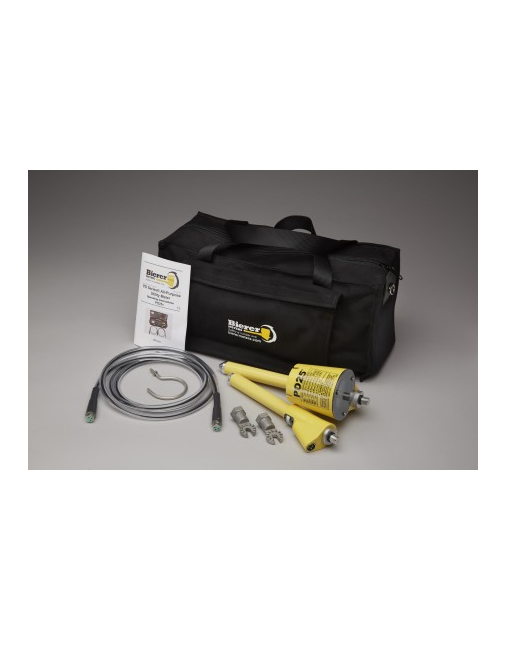

Includes:
0 – 25kV All-purpose utility meter
8 ft. regular cable
Hook probe
Straight probe
Manual
Standard bag
