Bevs BEVS 1813 Drying Time Recorder (6 tracks; 558x368x185mm)

Track quantity: 6

Motor: 3, each controls 2 tracks

Stroke length: 300mm

Stylus dia.: 2mm

Drying time: 30s - 240h arbitrarily set, 3 sets of track can be set independently

Glass strip size: 320x25x3mm / 320x60x3mm

Machine size: 558x368x185mm

Power supply: 220V, 50Hz

INTRODUCTION

BEVS drying time recorder is a leading measuring machine for each stage of the coating drying process. It is a linear drying time recorder that can directly identify the drying time of each track which has the characteristics of intuition and good reproducibility, and can accurately evaluate each stage accurately. It uses touch screen control and custom start and test time to make the operation more intuitive and simple.

FEATURES

ORDER INFORMATION

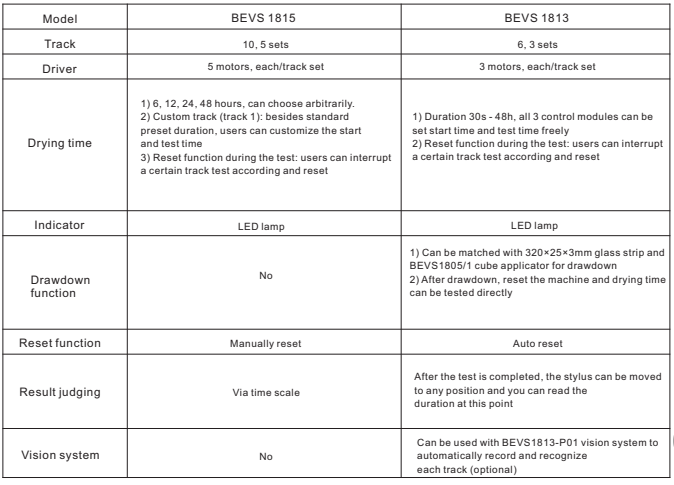

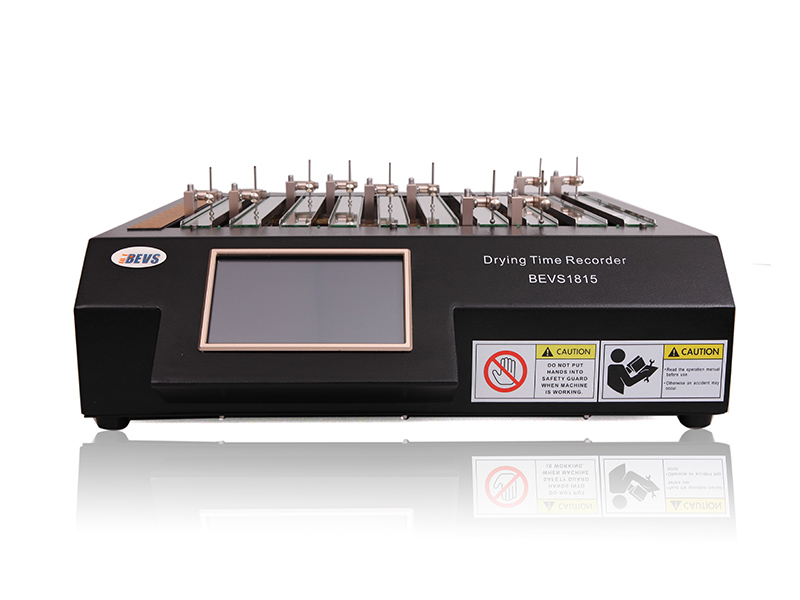

BEVS 1815 Drying Time Recorder

BEVS 1813 Drying Time Recorder

Datasheet
